Constrained-footprint cube storage.

A lightweight, moveable storage cube for high-density warehousing in harsh environments.

SpaceCuber
1000 lb

UDL per shelf

Anti-corrosion

highly corrosion-resistant steel

2 levels

walk-up picking

1,000–2,000 lb

UDL per cube

Purpose-built for deployment.

Why it’s different
SpaceCuber is BANAIR's moveable warehouse cube range, built for storage flexibility and density in harsh environments.
Read more

Cubes can be accessed on all four sides depending on the commodity and assembled into straight, L-shape or horse-shoe systems that reconfigure on the fly; with stair-kit add-ons they convert into an expeditionary Walk & Pick system or an alternative to IPE bin storage. The deck doubles as outdoor asset protection, shedding snow at a full 75 lb/sq ft rating.

SpaceCuber suits harsh-environment and expeditionary warehousing where layouts must change quickly and assets need protection from winter weather. The cement-bag configuration is optimized for military airfield-repair stores (3,000 lb bags), stacking two-high, two-wide in a container — 8 per 463L pallet, 20 per 20 ft ISO — and up to four high in a warehouse.

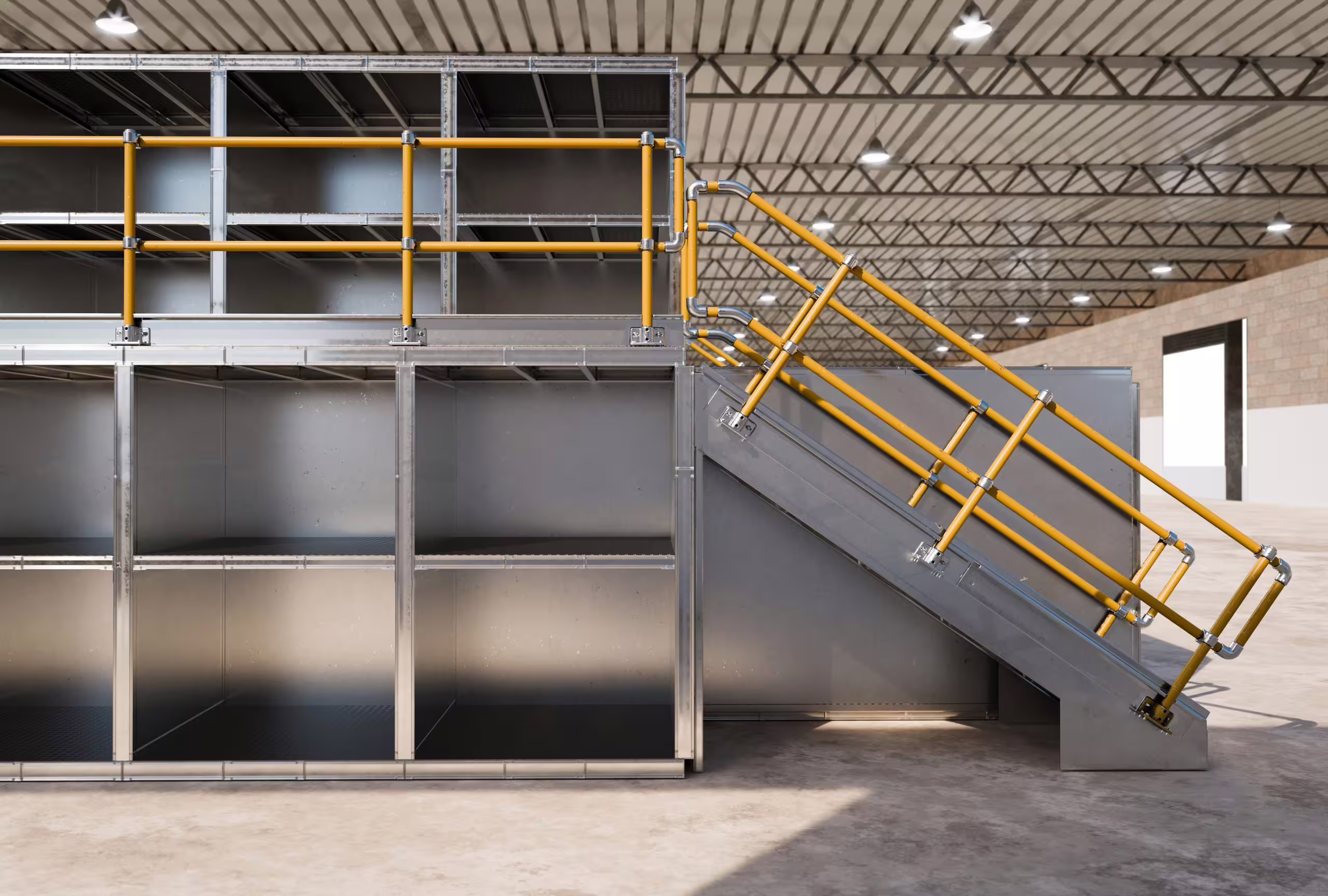

Render of one SpaceCuber bay seen from the side in an empty warehouse: two levels of open galvanised shelving with a stair and yellow handrails fitted to one end, standing clear of the surrounding floor
Render of a two-level SpaceCuber bay in a warehouse: galvanised steel shelving open along both levels, a wide stair with yellow handrails rising to the upper walkway, and further bays receding behind it

Engineered, calculated and proof-tested.

How it’s built
Weight capacity is 1,000 lb UDL as standard across the range, with heavier options to 2,000 lb, and the cube is lightweight for easy portability, shipping optimization and simple field repair.
Read more

Front options include 12-, 22- or 30-inch hinged or fixed panels or full locker-style doors, and the flow-through base is fire-code compliant. It is rated for all-weather performance down to -50 °C.

Standards: Fire-code compliant flow-through base.

Configurations: hinged or fixed front panels in 12, 22 or 30 in, IPE bins, or lockable hinged-door bins. SpaceCuber Shelving and SpaceCuber Bins are available as matched accessories; the shelving comes in a standard size and can be manufactured to bespoke dimensions on request.

Engineered in from the start.

Capabilities
Built into the base system — hover any capability for the detail.
  • Reconfigures on the fly
  • Four-side access
  • Constrained footprints
  • Moveable & lightweight

The engineering envelope.

Specifications
Shelf capacity
500 lb (227 kg) UDL per shelf
Cube capacity
1,000 lb (454 kg) UDL standard; options to 2,000 lb (907 kg)
Access
all four sides, depending on the commodity
Front panels
12, 22 or 30 in (305, 559 or 762 mm), hinged or fixed, or locker-style doors
Fire
flow-through base, fire-code compliant
Render of a two-level SpaceCuber bay in a warehouse: galvanised steel shelving open along both levels, a wide stair with yellow handrails rising to the upper walkway, and further bays receding behind it
