Mobile high-density racking.

High-density crates that stack rolling-stock assets three high to reclaim wasted vertical space — each deploying on a single 463L pallet.

RollingStack
Up to 3×

capacity, stacked

12,000 lb

max crate (5,440 kg)

4 classes

3,000 / 5,000 / 8,000 / 12,000 lb crates

Easy

configurable

What RollingStack brings to the mission.

Explore RollingStack

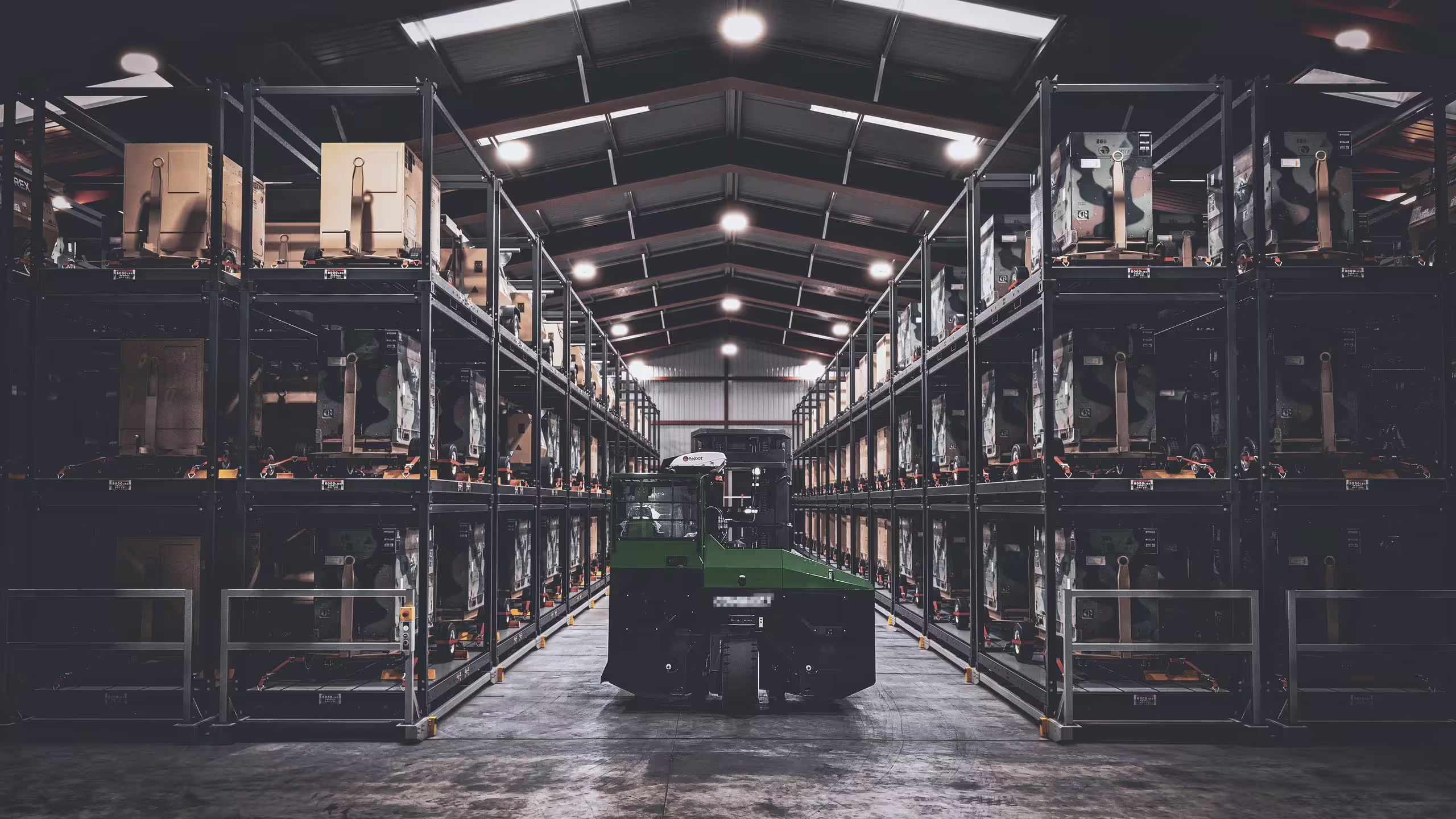

A dark warehouse aisle running to a vanishing point with RollingStack crates stacked three levels high on both sides, each level carrying strapped equipment, and a green tracked vehicle parked at the far end

Purpose-built for deployment.

Why it’s different
RollingStack is a family of high-density crates that let wheeled and crated rolling-stock assets be stacked up to three high, reclaiming the vertical space normally wasted above them and roughly tripling storage capacity.
Read more

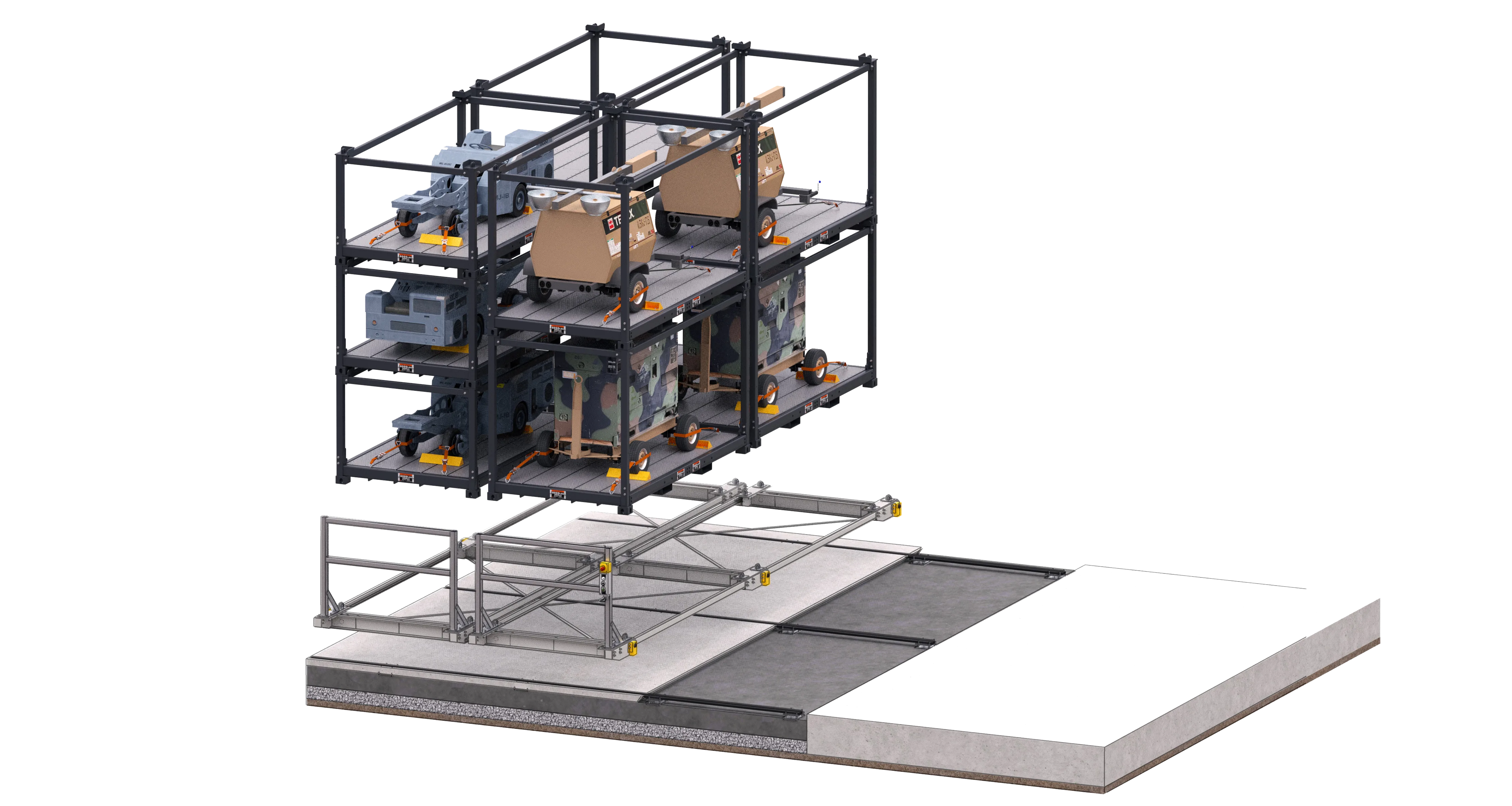

Crates engage their four bottom ISO corners with custom steel lugs, so they stack without additional fixings and can sit on static or mobile (rolling) bases to compress a warehouse further. Sizes are matched to the WRM and DABS asset spectrum - from bomblifts and generators to LOX, water and berm tanks and light tactical vehicles - with custom sizes available.

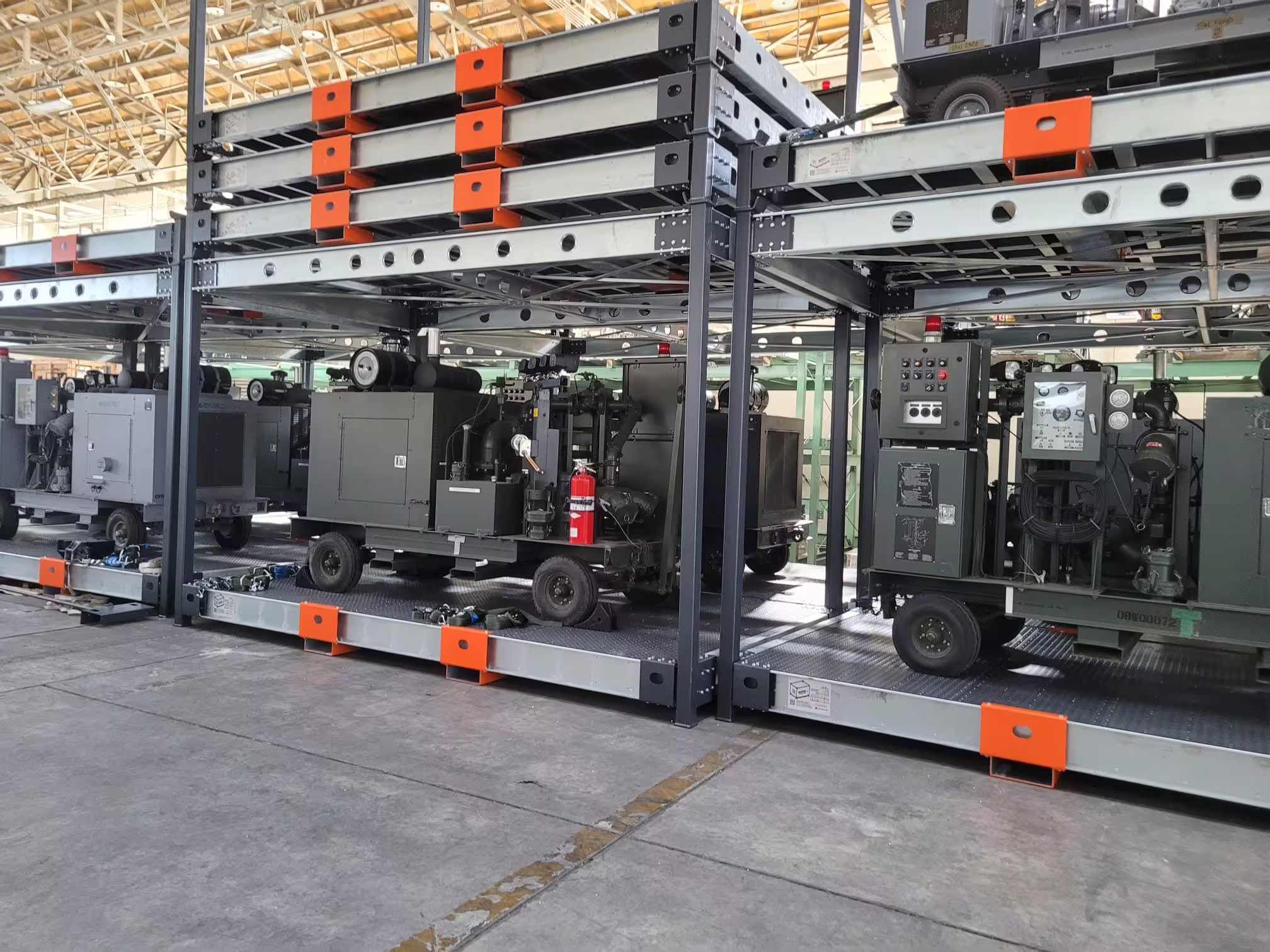

RollingStack is built for high-density storage of WRM/DABS rolling stock - generators, carts, bomblifts, pumps and tanks - that would otherwise sit single-height and consume floor space. In service with US forces including EODGRU ONE and Fort Drum; in a recent European defence warehousing programme, the second phase alone stored 800+ rolling-stock assets on mobile bases.

An elevated view across a RollingStack installation, several parallel runs of crates loaded with plant and equipment, yellow guide posts marking the run ends
A tan light tactical vehicle strapped down on a RollingStack level with yellow chocks under its wheels, further loaded levels above and below it, seen from the aisle

Engineered, calculated and proof-tested.

How it’s built
Crates are steel, sized to the same footprints as BICON/TRICON containers so they stay stackable and transport-efficient; the heavy-duty RS240.96.104-12K, for example, matches a 20 ft shipping-container envelope.
Read more

Quick-release bars let larger assets use the full internal cube, tie-down points secure the load, and portable ramps handle loading and unloading, while side access allows maintenance with crates still stacked. Crate capacities run from 3,000 to 12,000 lb, and each crate ships and deploys on a single 463L pallet.

Configurations: Stacked or mobile bases; removable ramp panels; removable reinforcements for taller items; optional detachable winch with safety hooks

Engineered in from the start.

Capabilities
Built into the base system — hover any capability for the detail.
  • One-pallet deployment
  • Sized to the fleet
  • Drive-in ready
  • Pairs with the yard
  • Configurable

The engineering envelope.

Specifications
Crate capacities
5,000 / 8,000 / 10,000 lb (2,270 / 3,630 / 4,536 kg)
Crate sizes
five standard sizes, 208–240 in long × 88–116 in wide × 52–118 in high
Density
up to 3× (stacks up to 3 high)
A single RollingStack crate seen side-on against a plain wall, carrying a wheeled plant unit on its deck with the yellow chocks and corner posts clearly visible
