High-cube containerised storage.

A free-standing storage cube that stacks three high with no fixings and moves in tandem — 12,000 lb maximum UDL per position, 463L/ISU90/bulk.

CargoCuber
12,000 lb

UDL per position (5,440 kg)

Up to 2

high, stacked

463L / ISU90

and bulk cargo

120×93×100.5 in

usable envelope

What CargoCuber brings to the mission.

Explore CargoCuber
CargoCuber frames standing outdoors against a wall, carrying tarpaulin-covered and strapped loads on timber bearers, with the orange load-rating plates visible on the beams

Purpose-built for deployment.

Why it’s different
CargoCuber is a free-standing, moveable storage cube — a modular rack for 463L pallets, ISU90 containers and bulk that stacks up to three high, combines and moves in tandem.
Read more

Custom steel lugs engage the four bottom ISO corner castings, so cubes stack and link back-to-back and side-to-side into rigid structures with no fixings or additional hardware — all they need is a level, firm base. Because the modules are not bolted to the ground, a forklift can change a warehouse or yard layout on the fly, from selective to bulk storage.

CargoCuber is built for airfield, flight-line and aerial-port storage, letting crews assemble and relocate yard storage structures rapidly without site preparation. In a recent European air-base programme, 320 CargoCubers were fielded at 12,000 lb capacity.

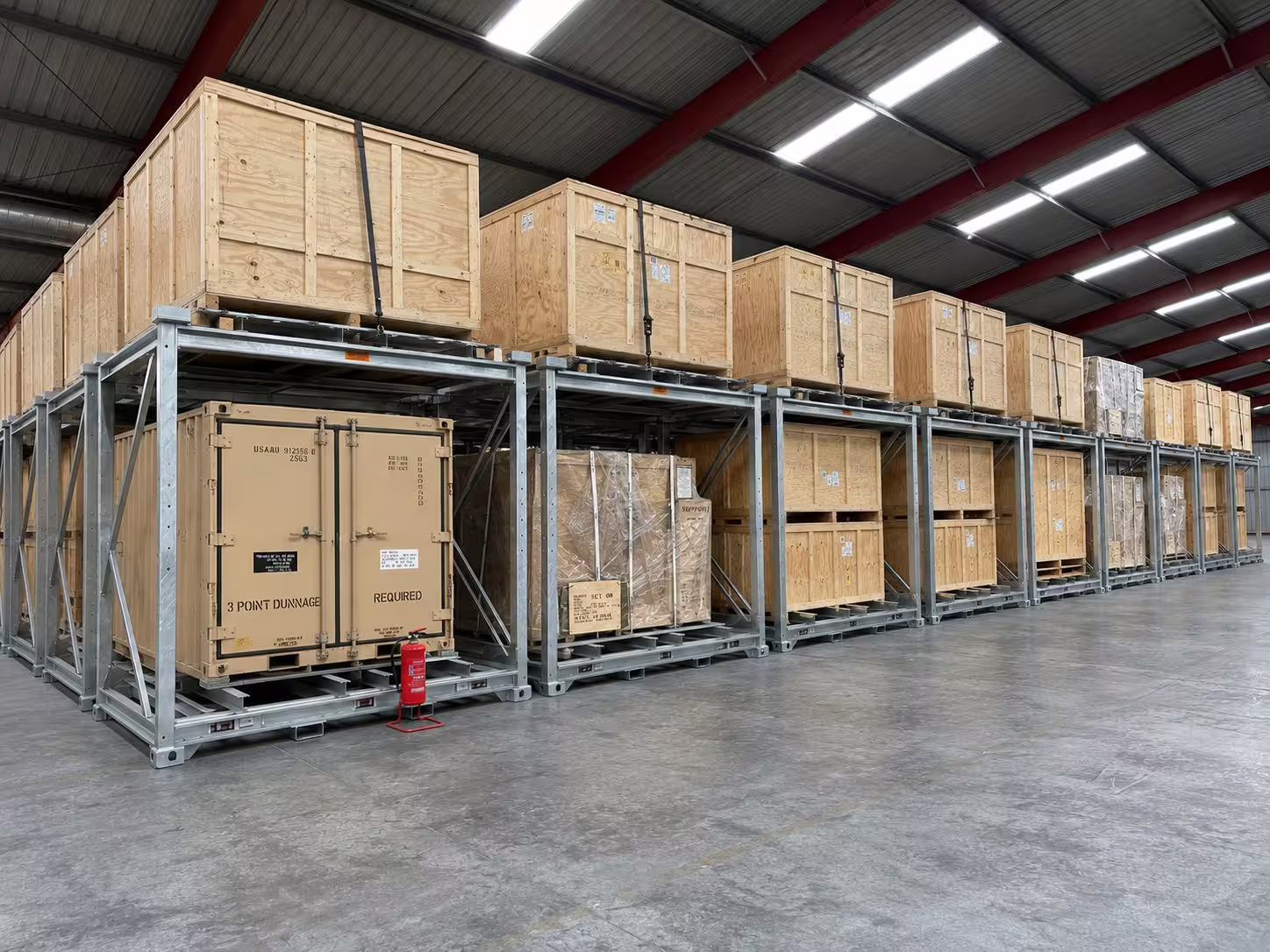

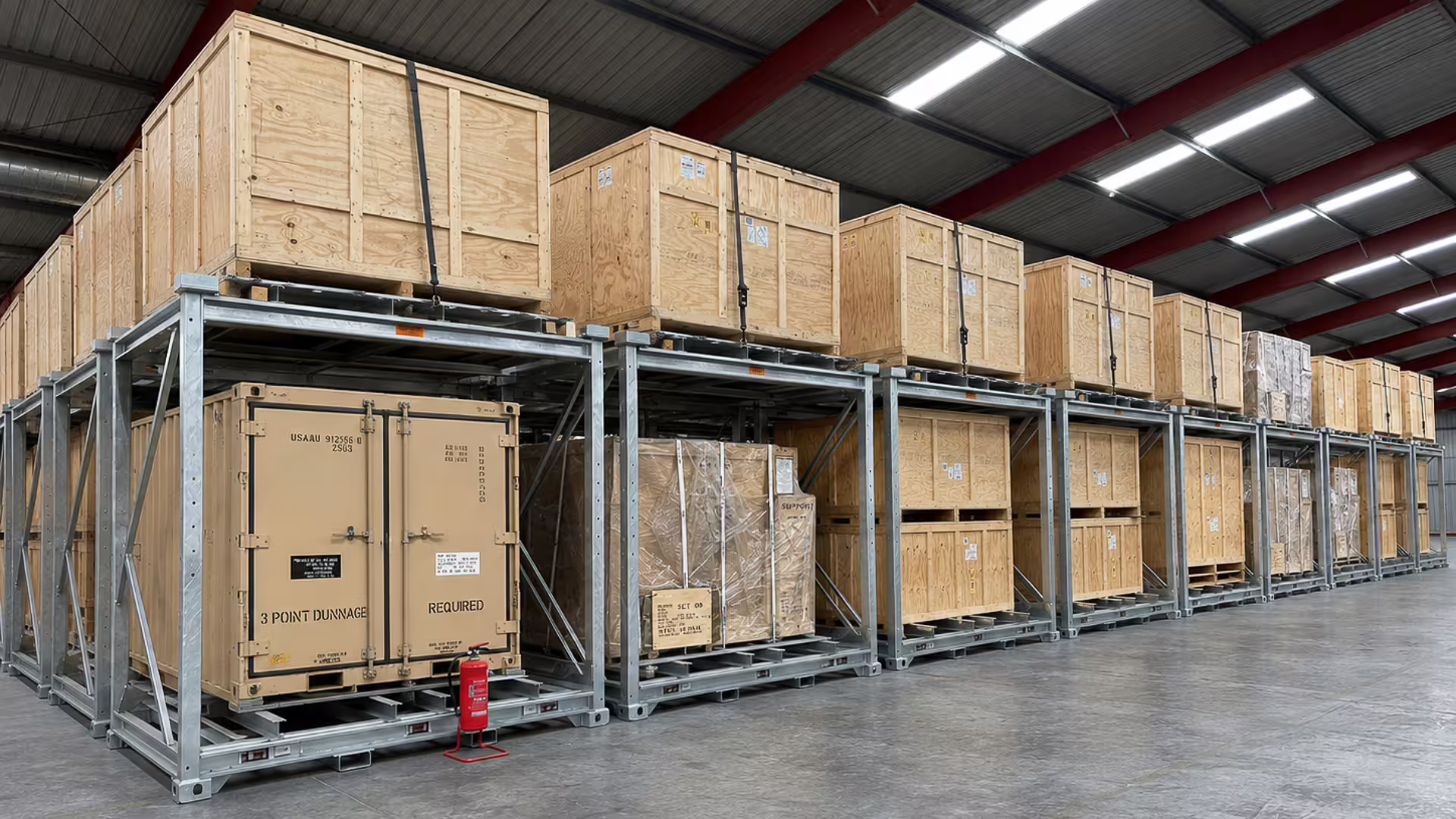

A long row of galvanised CargoCuber frames receding down a warehouse, each carrying timber crates and palletised loads on two levels

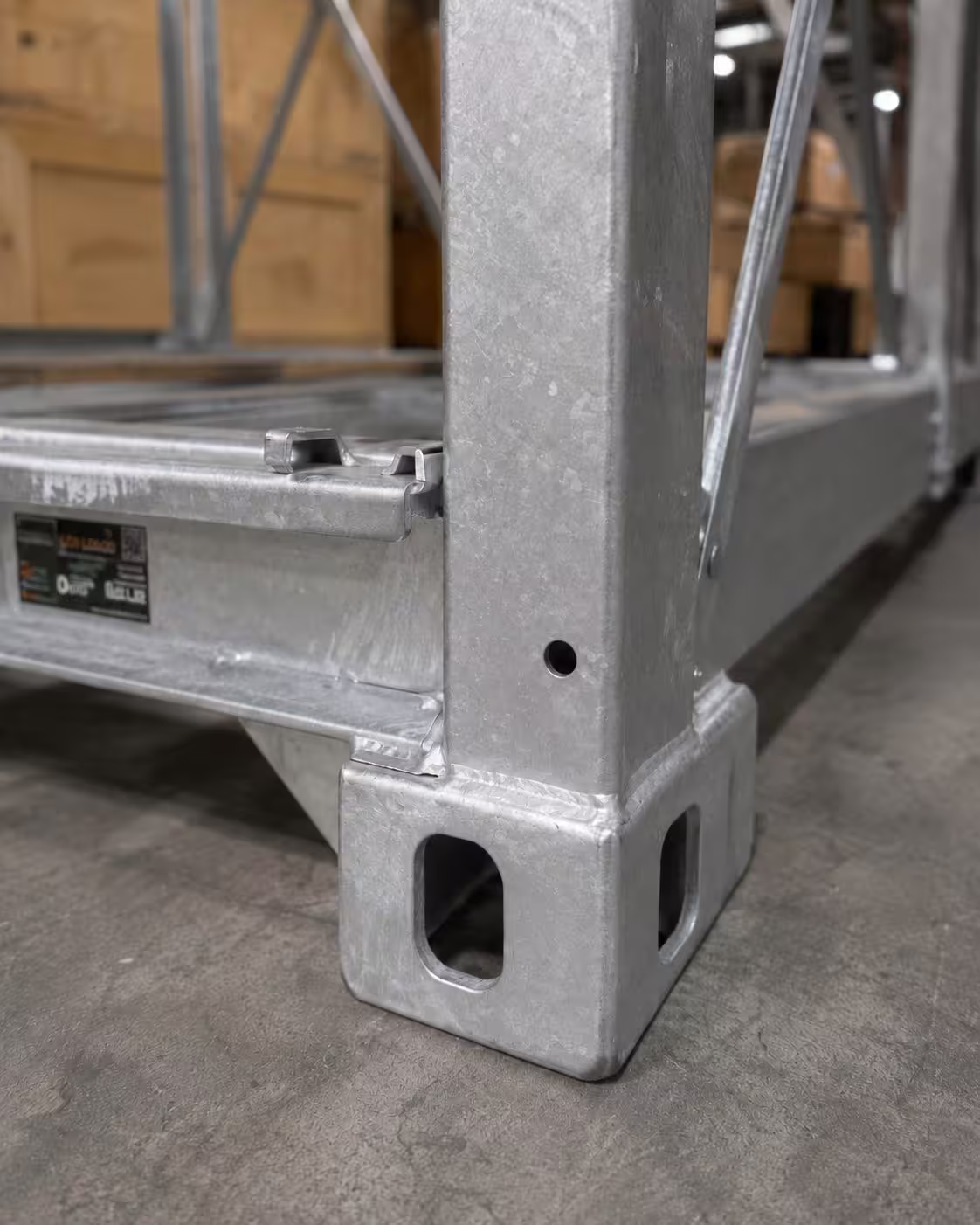

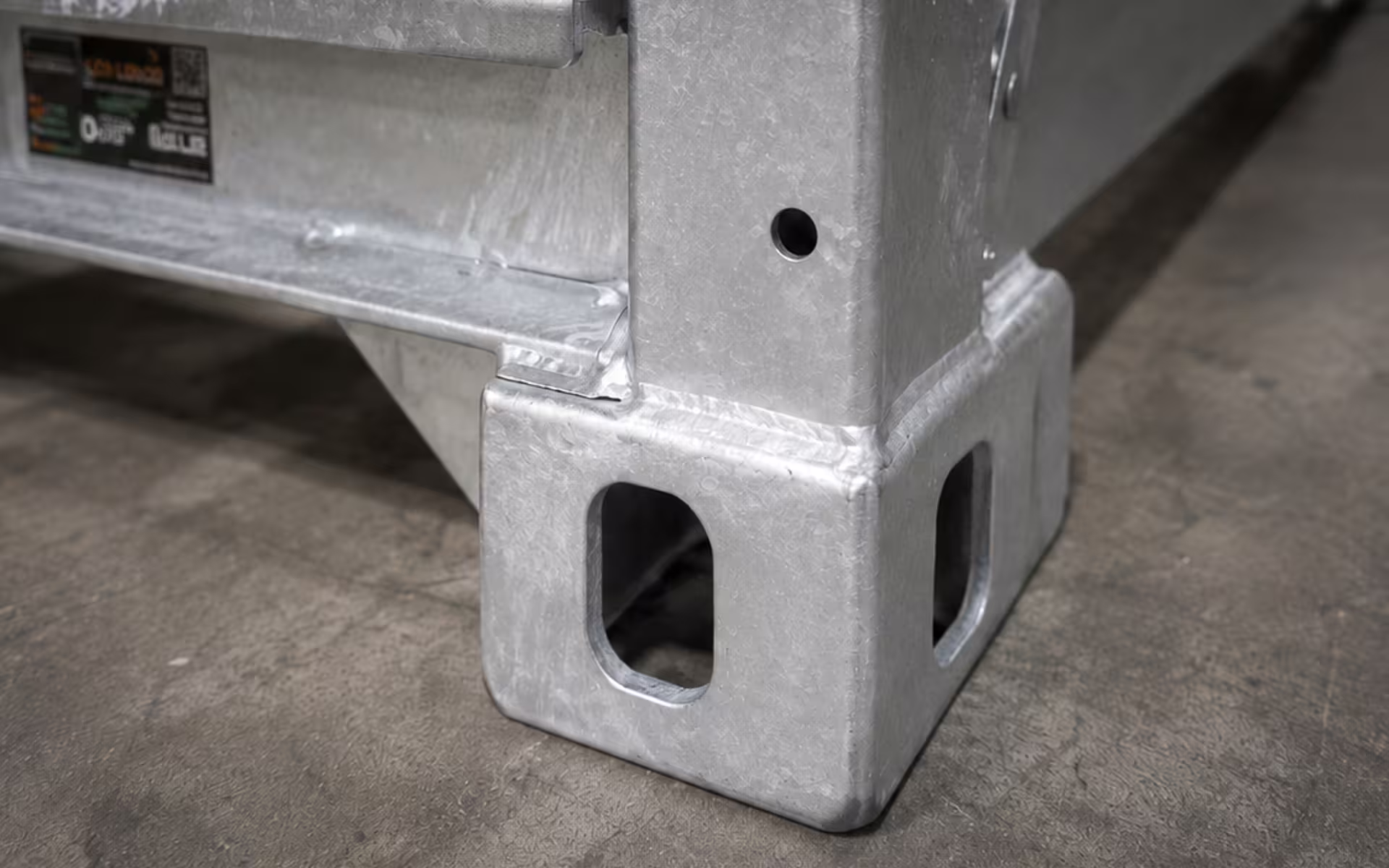

A close view of a CargoCuber corner casting, showing the twin location holes and the welded junction between the upright and the base rail

Engineered, calculated and proof-tested.

How it’s built
Each position is rated 12,000 lb maximum UDL, with an internal usable envelope of 120×93×100.5 in and an internal shelf settable at three heights on 6-inch adjustment.
Read more

The cube is hot-dip galvanized for all-weather service, and movable stair kits give access to loads even when stacked two high; an optional fabric cover is available. The line includes intermediary platforms (BACC-S6 at 6,000 lb, BACC-S12 at 12,000 lb) and the BACC-SP12K rolling-stock pallet — 108×94 in, 14 tie-down points, carrying a lifetime limited warranty.

Configurations: BACC (base rack, 12,000 lb UDL); BACC-S6 (intermediary adjustable platform, 6,000 lb UDL); BACC-S12 (intermediary adjustable platform with integrated dunnage, 12,000 lb UDL); BACC-SP12K (rolling-stock / general-purpose pallet, 12,000 lb UDL)

Engineered in from the start.

Capabilities
Built into the base system — hover any capability for the detail.
  • Reconfigure on the fly
  • Moves in tandem
  • No site preparation
  • Long-load capable
  • Pairs with the yard

The engineering envelope.

Specifications
UDL per position
12,000 lb (5,440 kg)
Internal envelope
120 × 93 × 100.5 in (3,048 × 2,362 × 2,553 mm)
BACC-S6 platform
6,000 lb (2,720 kg) UDL
BACC-S12 platform
12,000 lb (5,440 kg) UDL, integrated dunnage
BACC-SP12K pallet size
108×94 in (274×239 cm)
BACC-SP12K pallet weight
735 lb (333 kg)
Tie-down points
14
Warranty (SP12K pallet)
lifetime limited

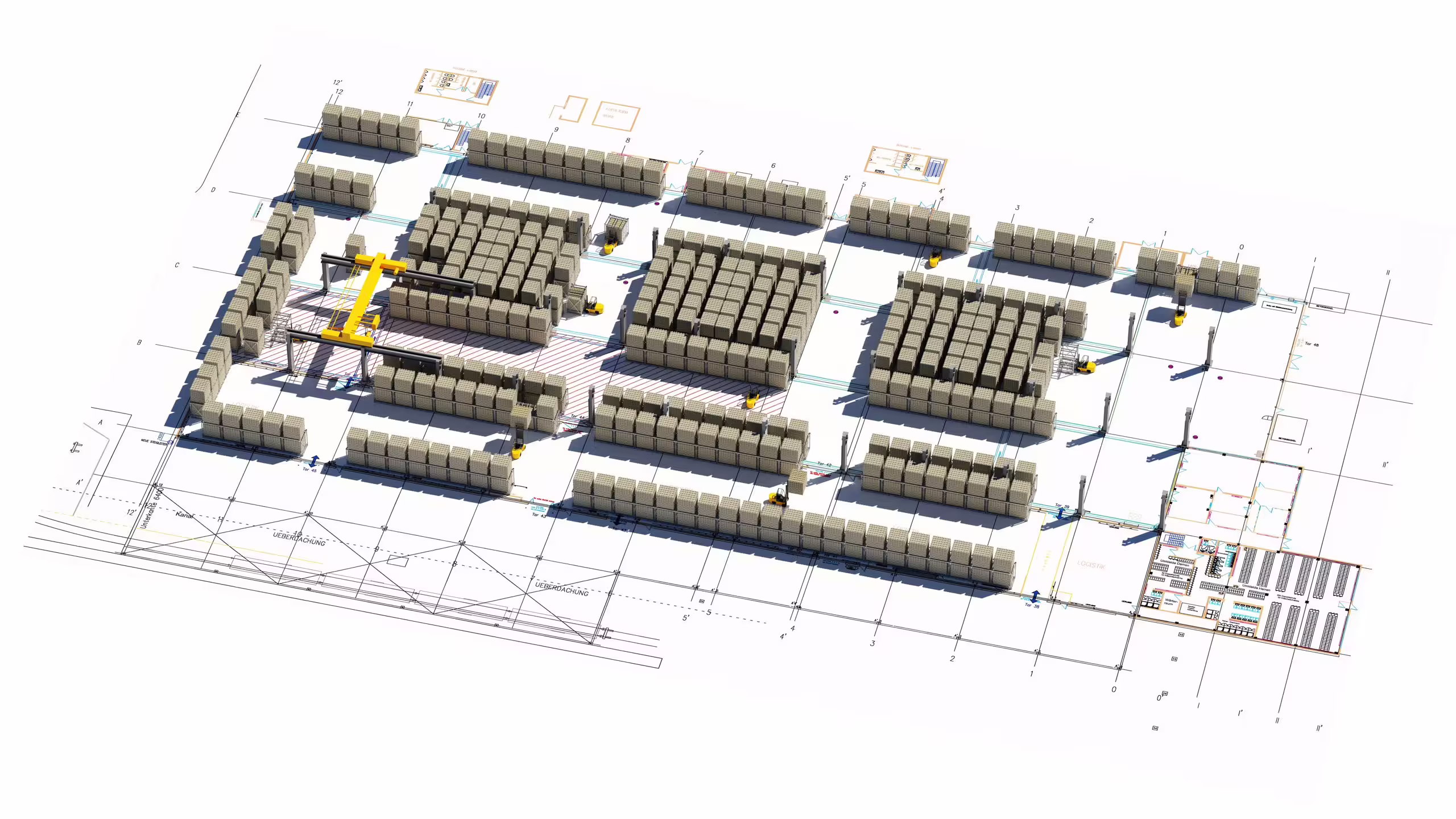

An isometric layout drawing of a warehouse filled with CargoCuber frames in blocks and rows, with aisles, handling equipment and floor markings indicated
