Instantly Adjustable Rack.

Reposition loaded steel pallets on 6-inch centers with a forklift alone — no bolts, no emptying the bay.

IARS
Request a quoteSee the specs
6 in

forklift adjust centers

8–30 ft

12 rack heights

2,000 lb

per pallet (908 kg)

Up to 50%

less footprint, same stock

What IARS brings to the mission.

Explore IARS

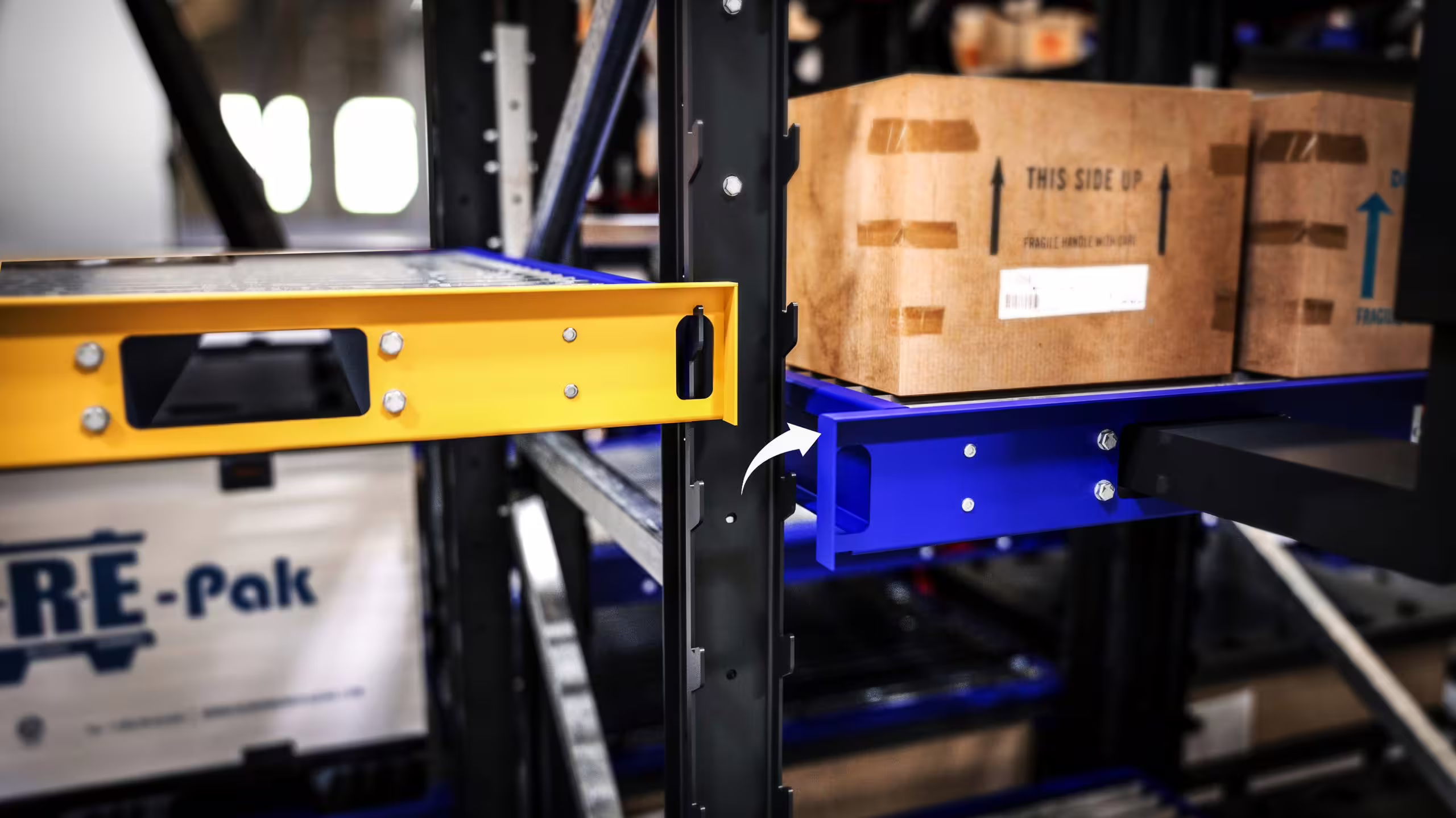

Close view of two IARS beams at an upright: a yellow beam lifted clear of the punched column with its hook disengaged, and a blue beam seated in the slots below it carrying a palletised carton

Purpose-built for deployment.

Why it’s different
IARS is BANAIR's Instantly Adjustable Rack System — free-standing uprights hooked every 6 inches, so a forklift lifts any loaded steel pallet clear and resets its height in moments.
Read more

Conventional rack bolts or pins its shelves in place, forcing crews to empty a bay and work at height before any change. IARS removes that constraint: the same stock fits in up to 50% of the footprint, and layouts adapt as the mission changes rather than being locked in at install.

IARS is the space-optimization backbone for military warehouses and depots — WRM, DABS and MRO stock — where load heights change constantly and readiness depends on retrieving any pallet on demand. It is the base system beneath RackMezz multi-level structures and pairs with CargoRack across integrated storage projects.

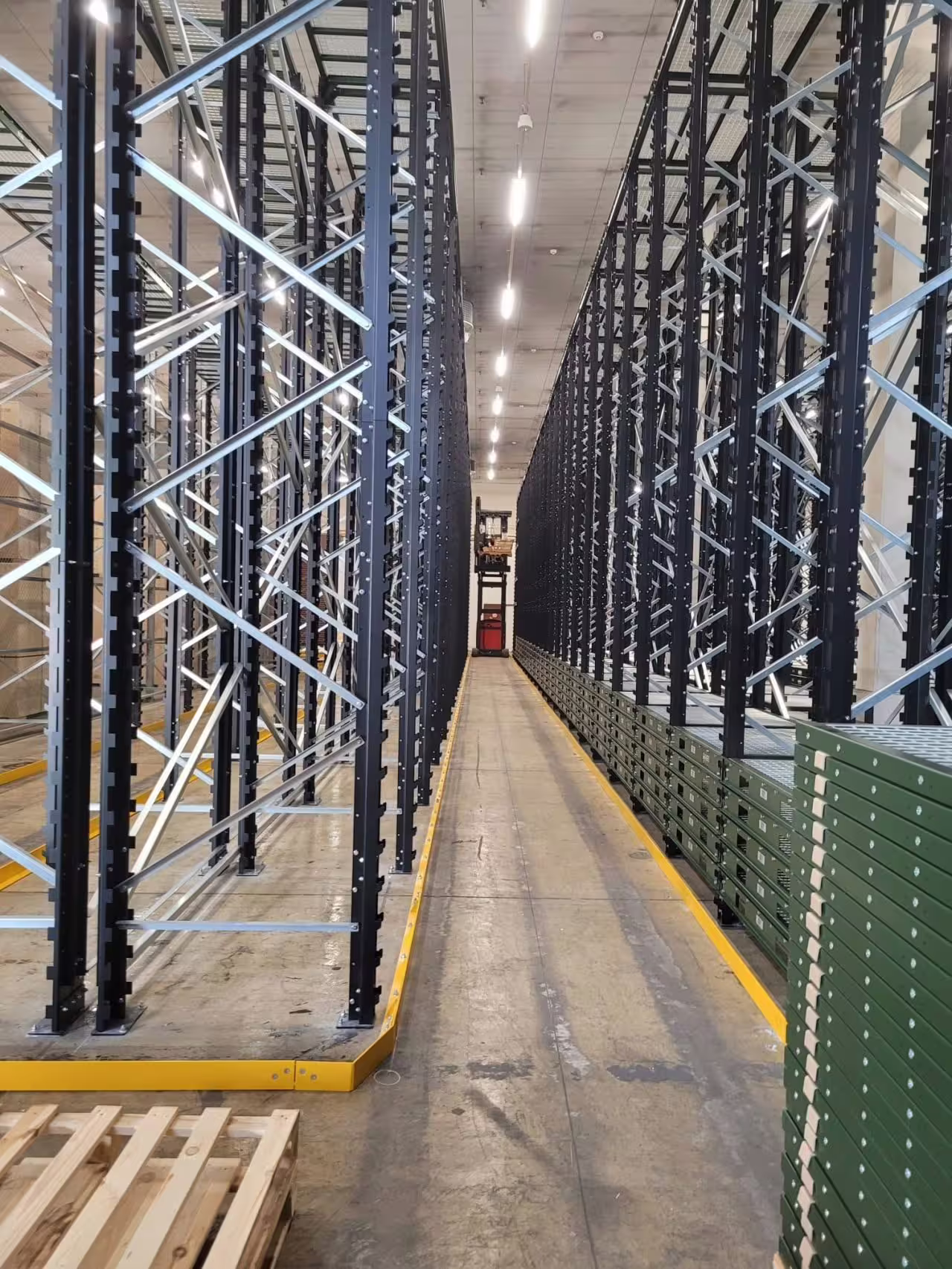

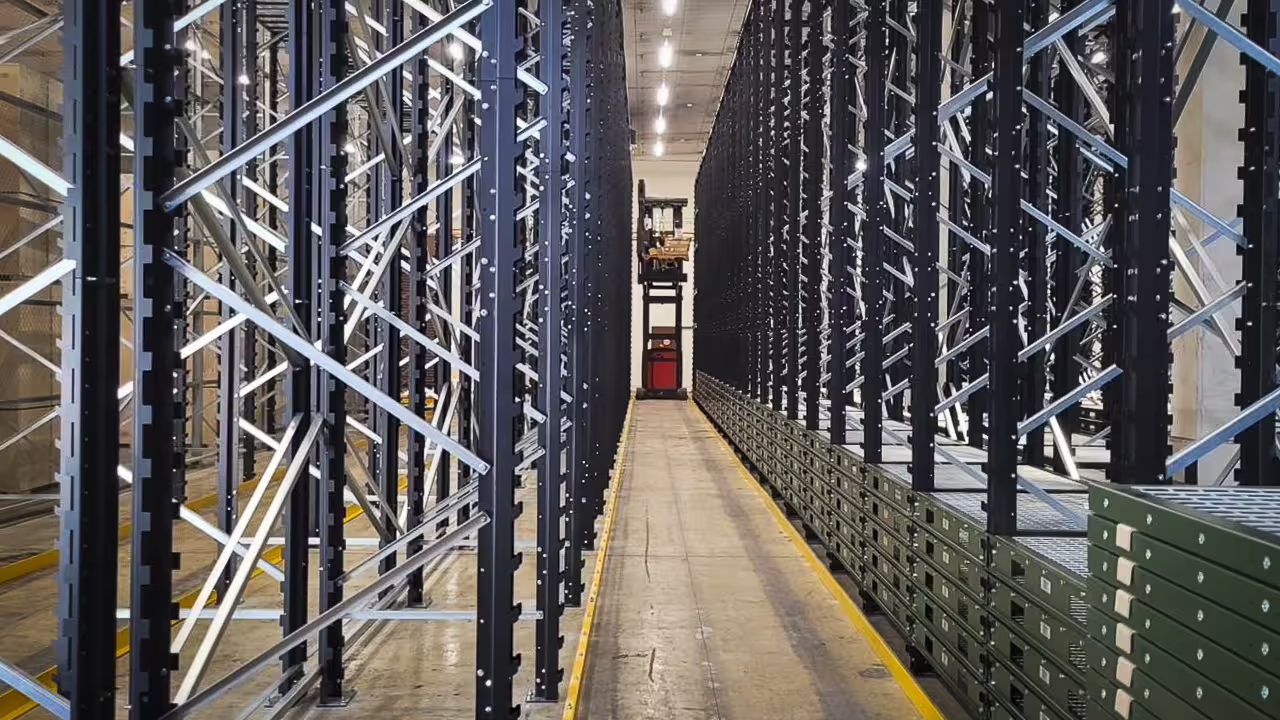

Looking down a narrow aisle between two runs of tall IARS racking loaded with boxed stock, the bays rising the full height of the building and rail lines set into the aisle floor
Close view of an IARS carriage base: steel wheels running on an inset floor rail, a bolted chassis beam, the foot of a punched upright and two yellow safety-sensor housings mounted on the frame

Engineered, calculated and proof-tested.

How it’s built
IARS is cold roll-formed from high-yield structural steel with punched slots for tool-free, fully adjustable beams, then welded and finished in polyester powder-coat (85 µm minimum) or hot-dip galvanizing.
Read more

Flow-thru decks are standard, meeting NFPA 13 and UFC 3-600-01. Every system is engineered and tested to RMI / FEM (FEM 10.2.02) and BS EN 15512, with verified load ratings and full material traceability, and re-sets in place with a regular forklift. Manufactured in Poland (EU).

Standards: Fire-code compliant; designed to industry standards. RMI and FEM industrial rack standards compliant. All pallets/shelves are flow-thru design as standard (to meet NFPA13 and UFC 3-600-01)

Configurations: adjustable IARS pallets in flow-thru configuration, tire storage modules, HazMat drip trays, cantilever arms, a mobile system, guide rails and corner protectors.

Engineered in from the start.

Capabilities
Built into the base system — hover any capability for the detail.
  • Hot-dip galvanized
  • RMI / FEM & EN 15512
  • Material traceability
  • Tool-free beams
  • Flat-pack or assembled
  • Lifetime warranty

The engineering envelope.

Specifications
Height range
8–30 ft (2.4–9 m) · 12 settings in 2 ft (61 cm) increments
Adjustment
every 6 in (15 cm), by forklift
Pallet capacity
2,000 lb (908 kg)
Footprint
up to 50% reduction, same stock

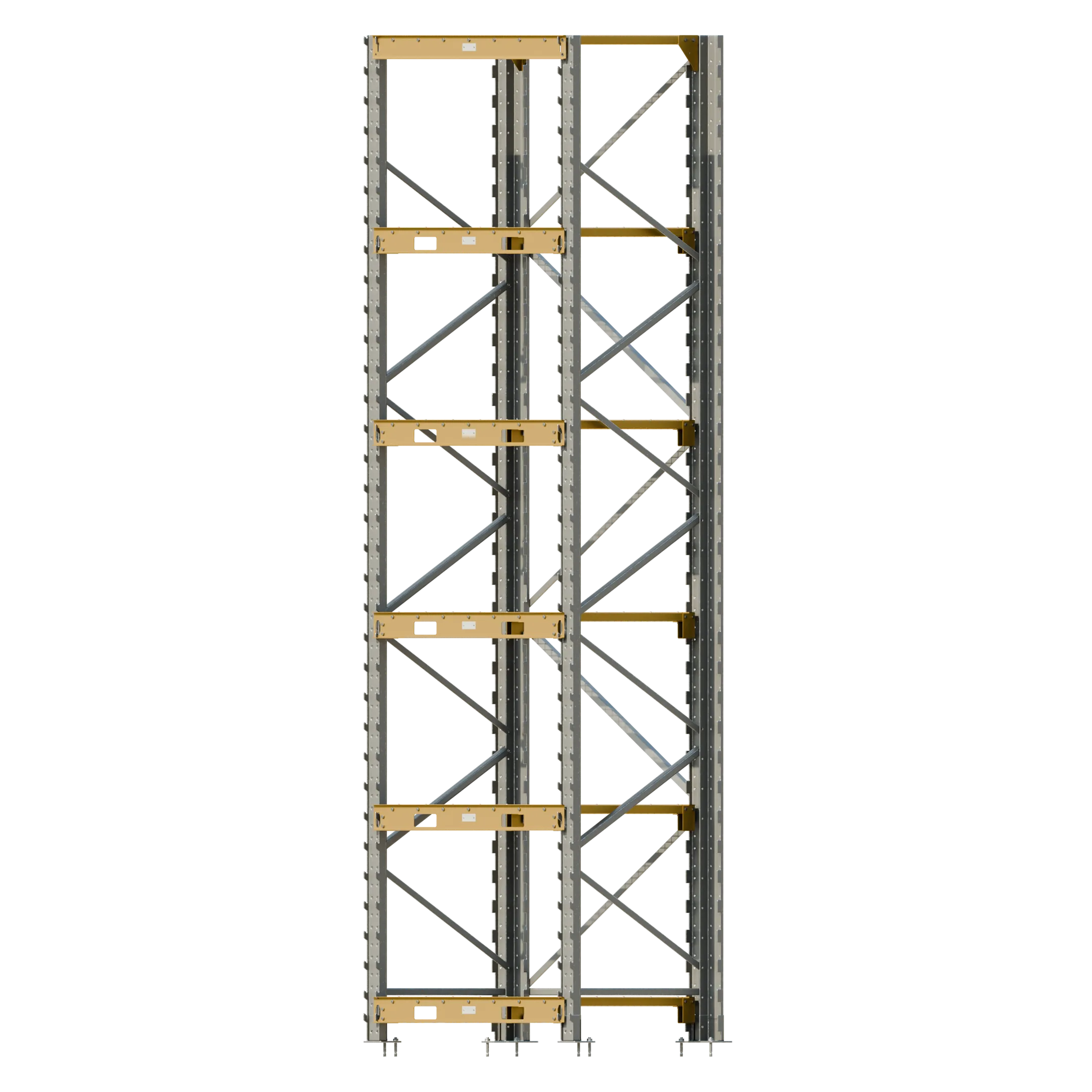

A side elevation of an IARS bay: punched steel uprights with diagonal cross-bracing, carrying six levels of adjustable pallet load ribs

The rest of the Storage Systems family.

Similar systems
IARS is part of the BANAIR Group Storage Systems family.

Adds personnel-access mezzanine levels above the racking to recover vertical space in an existing footprint.

RackMezz

Learn more

High-density rack storage dimensioned to military cargo — six fixed and mobile variants, 12,000–27,000 lb per platform, installs on existing ground without a slab.

CargoRack

Learn more

Maximises cube utilisation for containerised, palletised and ISO-format equipment.

CargoCuber

Learn more

High-density crates that stack rolling-stock assets three high to reclaim wasted vertical space — each deploying on a single 463L pallet.

RollingStack

Learn more

Fits maximum stored volume into constrained footprints and specialist load profiles.

SpaceCuber

Learn more

A modular crate for bulk-fuel equipment — four heights on a common footprint, stacking four high, secured by quick-release bars and tie-downs.

WRM Cuber

Learn more

Holds parts and consumables, then folds flat to a small transport footprint when not in use.

Folding Bins

Learn more
