Folding parts & consumables bins.

Parts and consumables bins that fold flat for transport and stack for storage — rated to 1,500 lb (680 kg).

Folding Bins
Request a quoteSee the specs
1,500 lb

capacity (680 kg)

Anti-corrosion

highly corrosion-resistant steel

40×48 in

common footprint (both sizes)

Folds flat

becoming stackable

What Folding Bins brings to the mission.

Explore Folding Bins
Folding bins stacked in a bay with a full set of timber divider trays drawn out on their runners, showing how the internal shelving is carried and removed, a forklift standing by

Purpose-built for deployment.

Why it’s different
Folding Bins replace plastic parts bins in stores that must carry weight and pass fire code. Roll-formed from Magnelis-coated steel, each bin is rated to 1,500 lb (680 kg) and is CE compliant, resolving the fire-protection issue plastic bins create. SC-BIN 27 and SC-BIN 47 share the same 40 × 48 in base, and both collapse when empty.
Read more

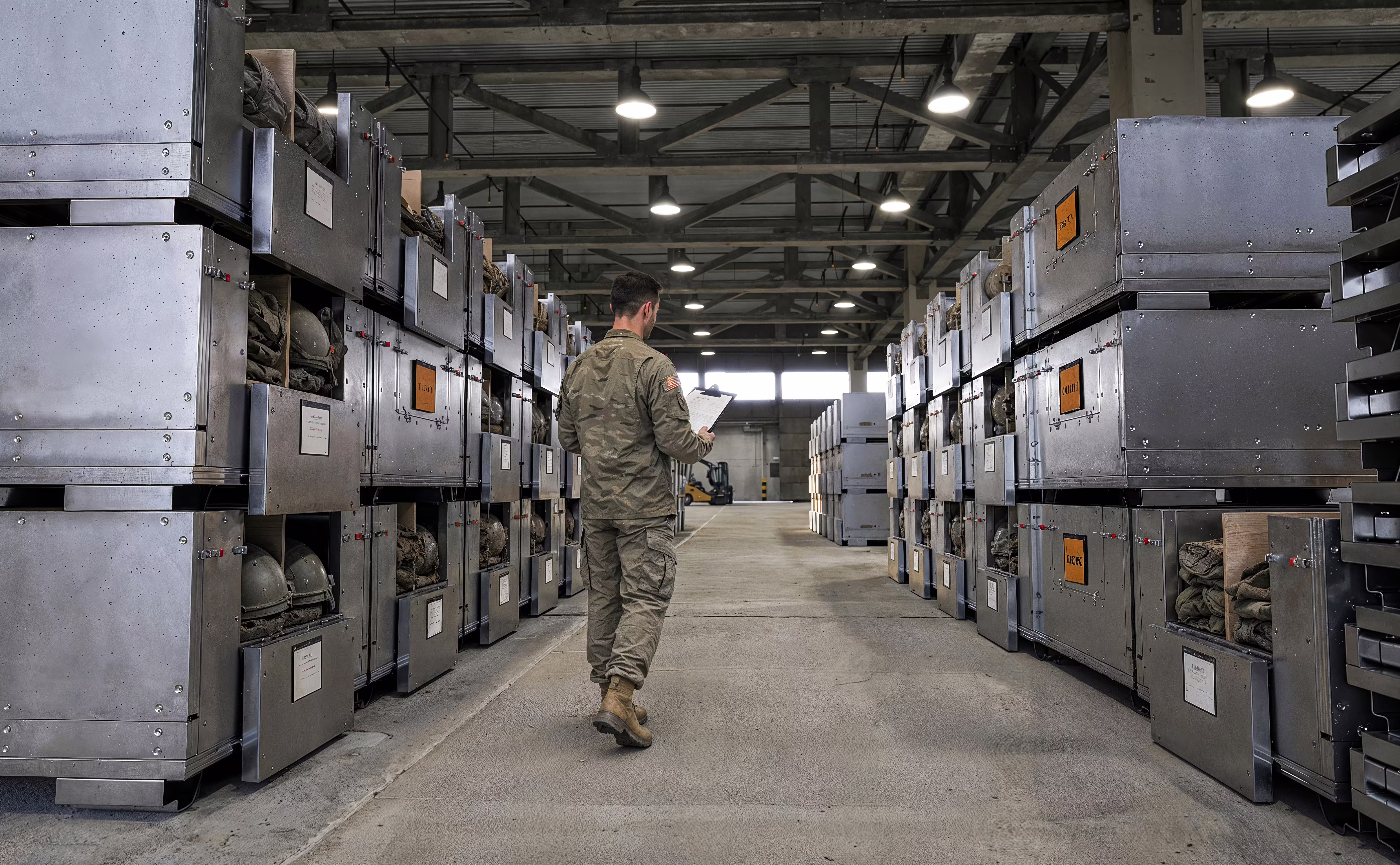

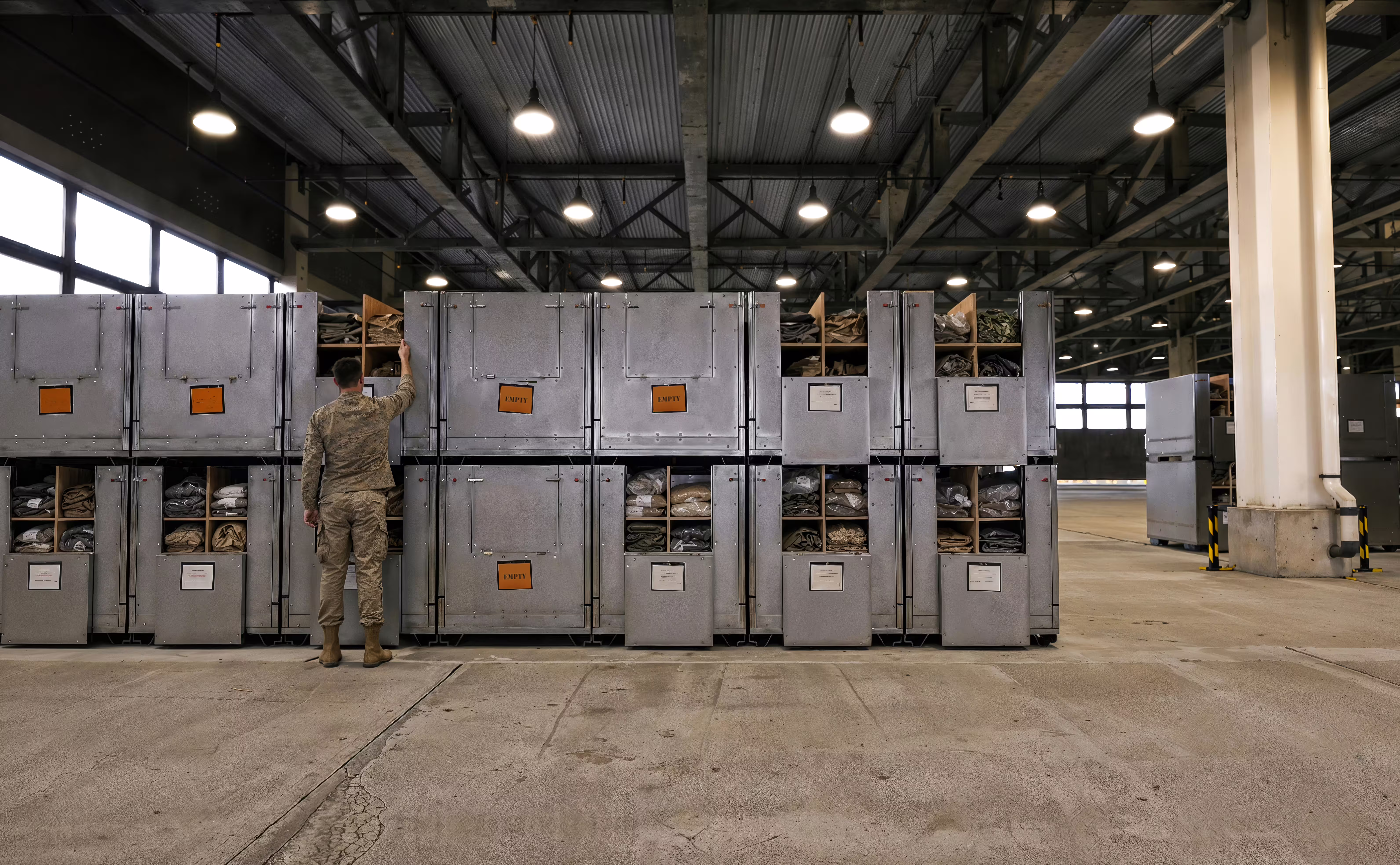

Each bin breaks down into four steel panels and a base, joined by folding hinge points - no tools required. Loaded bins stack up to three high; empty bins fold flat to a small transport footprint.

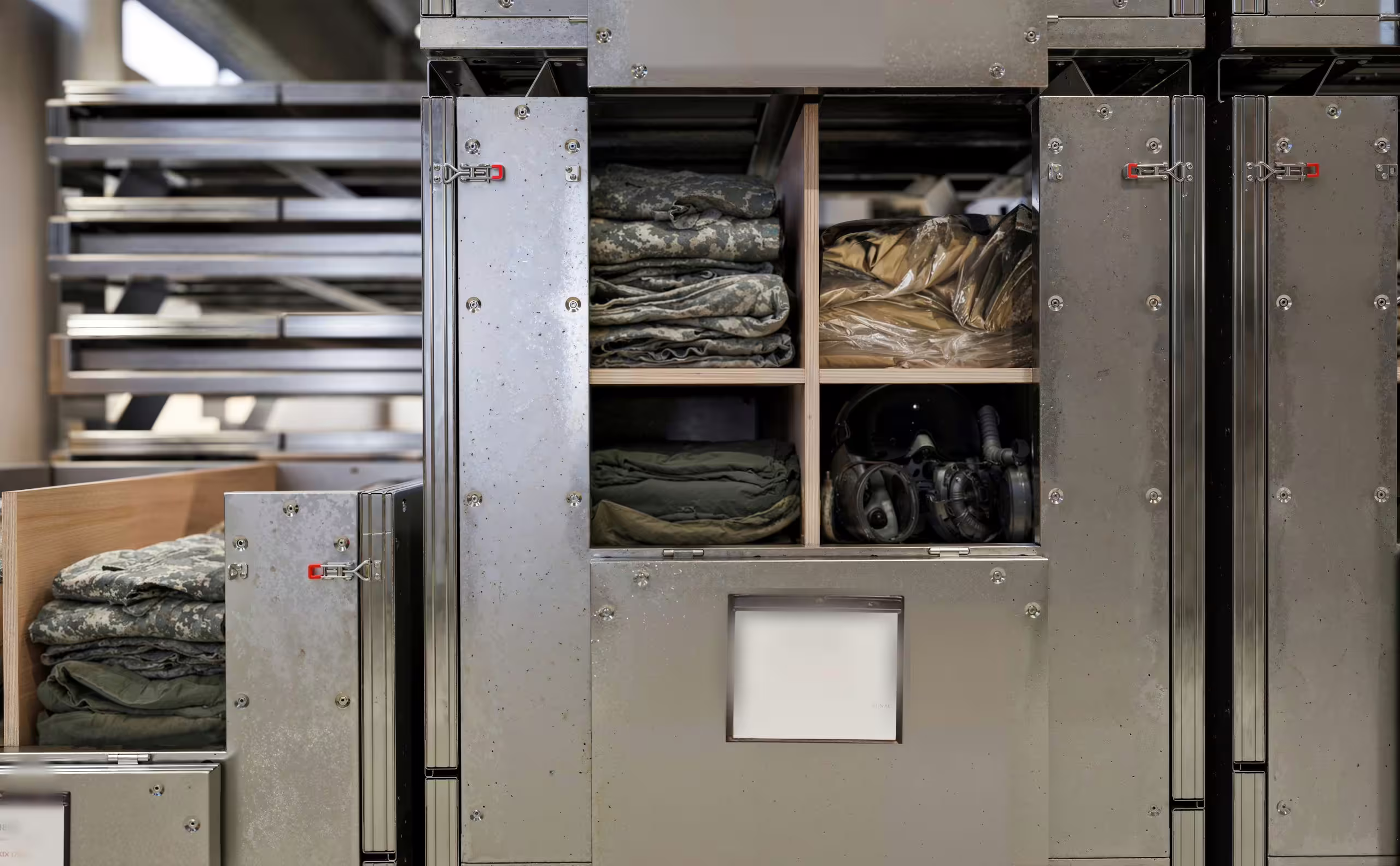

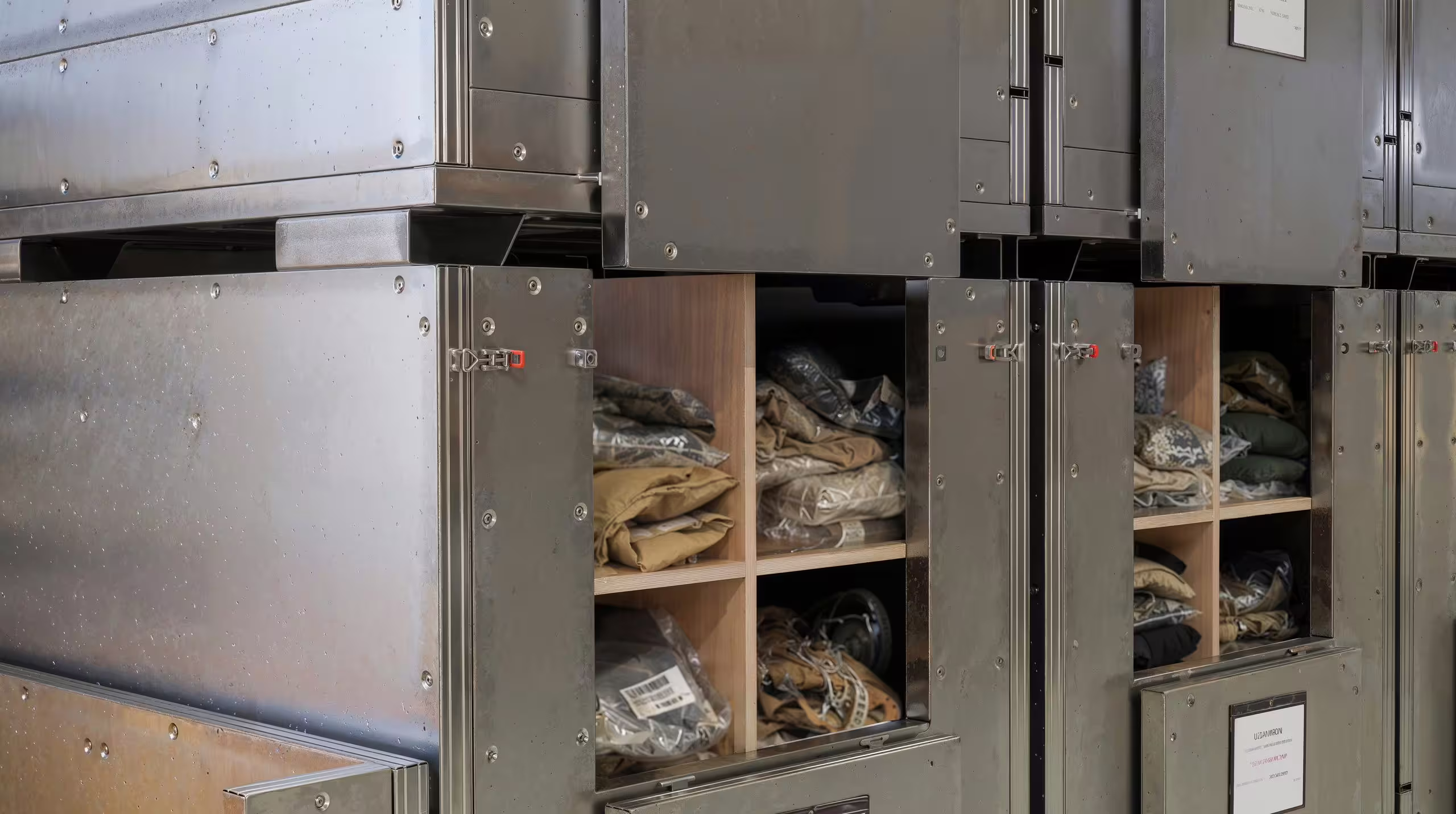

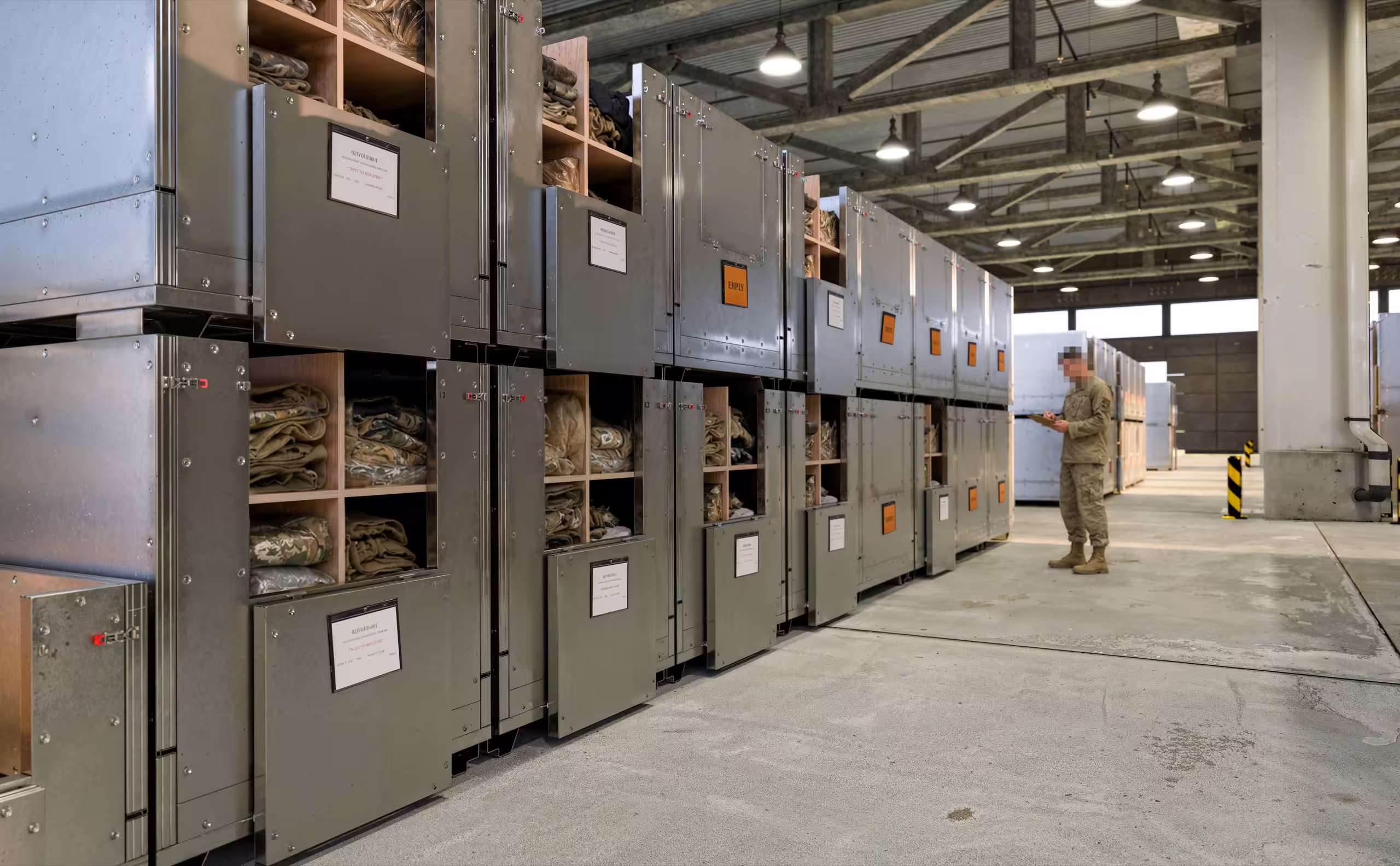

Interchangeable plywood dividers slot into the shell to split the interior into compartments sized to the load - separating tops, bottoms and item sizes without a fixed internal layout. Built to replace plastic tote storage in IPE and CIF issue facilities, alongside SpaceCuber Walk & Pick.

A forklift lifting a loaded folding bin clear of a row of others in a deployment warehouse, with stored kit visible in the open bin fronts alongside

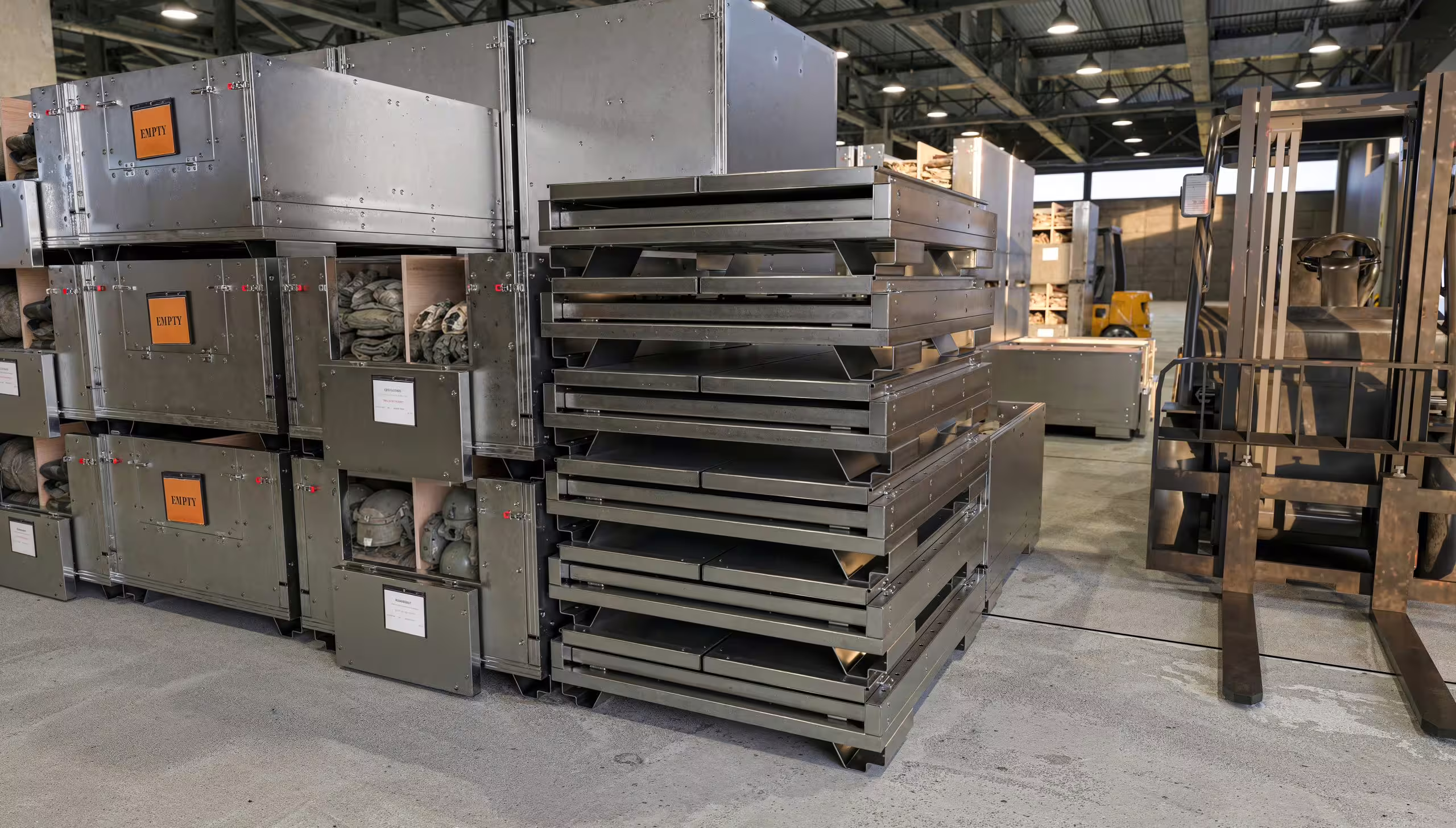

Folding bins stacked in a bay with a full set of timber divider trays drawn out on their runners, showing how the internal shelving is carried and removed, a forklift standing by

Engineered, calculated and proof-tested.

How it’s built
Roll-formed from Magnelis coated steel — a highly corrosion-resistant coating — with interchangeable dividers that split a bin into smaller compartments. SC-BIN 27: 40 × 48 × 27 in. SC-BIN 47: 40 × 48 × 47 in.
Read more

Roll-formed, highly corrosion-resistant steel panels form the shell, with hinge points folding the bin flat and no fixings to lose.

Configurations: two sizes on a common 40 × 48 in footprint, designated by erected height — SC-BIN 27 (40 × 48 × 27 in / 1,016 × 1,219 × 686 mm) and SC-BIN 47 (40 × 48 × 47 in / 1,016 × 1,219 × 1,194 mm); interchangeable plywood divider kits split the interior into compartments sized to the load; stacks three high loaded.

Engineered in from the start.

Capabilities
Built into the base system — hover any capability for the detail.
  • IPE & CIF issuing
  • Dense floor storage
  • No-tool assembly
  • Pairs with SpaceCuber

The engineering envelope.

Specifications
Capacity
1,500 lb (680 kg)
SC-BIN 27
40 × 48 × 27 in (1,016 × 1,219 × 686 mm) erected
SC-BIN 47
40 × 48 × 47 in (1,016 × 1,219 × 1,194 mm) erected
Stacking
up to 3 high, loaded
Dividers
interchangeable plywood — compartments sized to the load

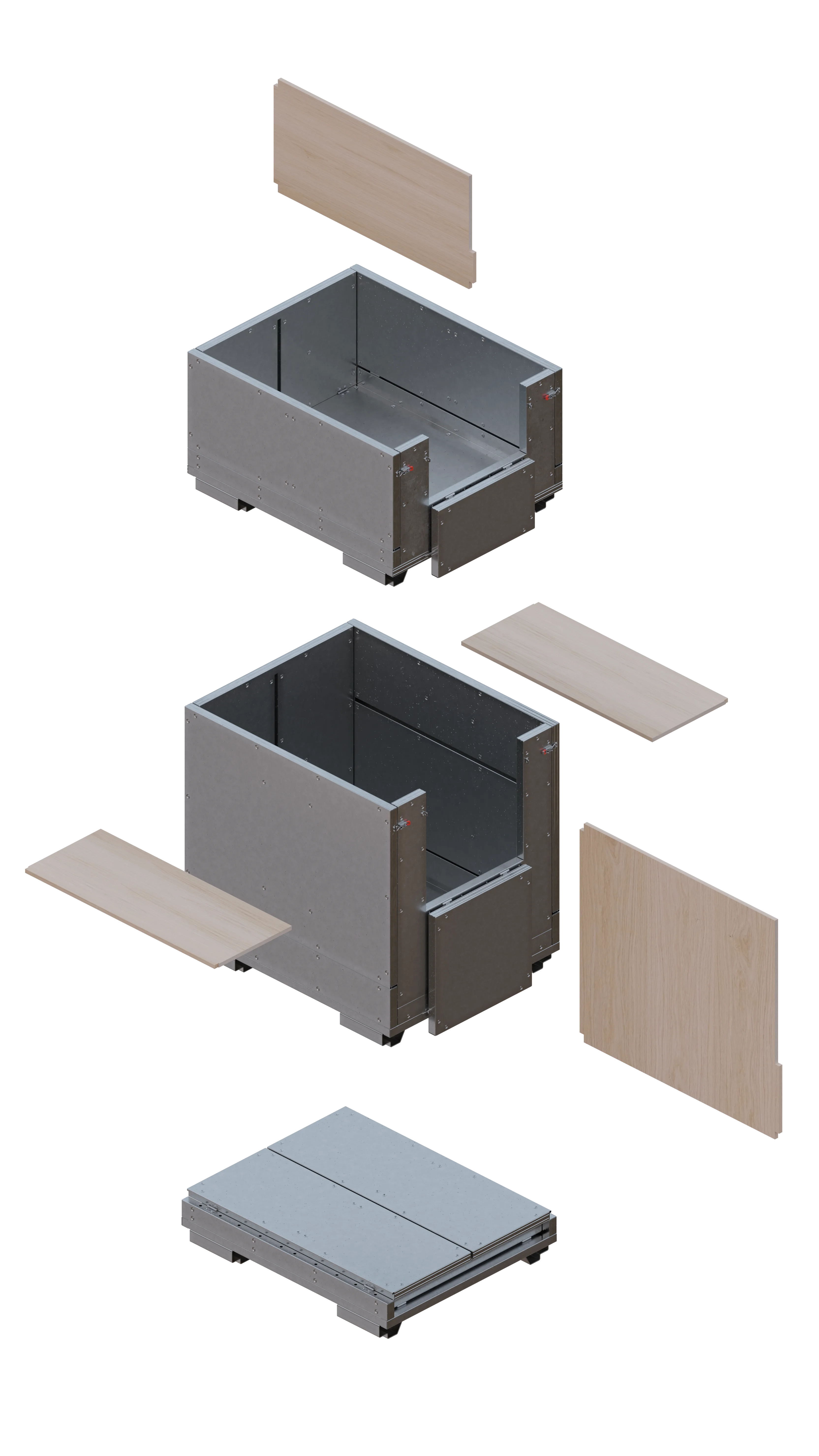

Exploded isometric drawing of a folding bin on a black ground: the steel body, the two removable divider panels and the base shown separated out and stacked in order
