No gaps. No limits.
A 90-short-ton modular rail mat that bridges ground to rail car — four-person assembly, standard or broad gauge, no rail contact.
RM90 · RailMat 9090 short tons
load-certified (82 t)
Galvanized
hot-dip, anti-slip deck
Any gauge
standard or broad, no rail contact
Packs down
containerised transport
What RM90 · RailMat 90 brings to the load.
Explore RM90 · RailMat 90
Built for the fight, packed for the flight.

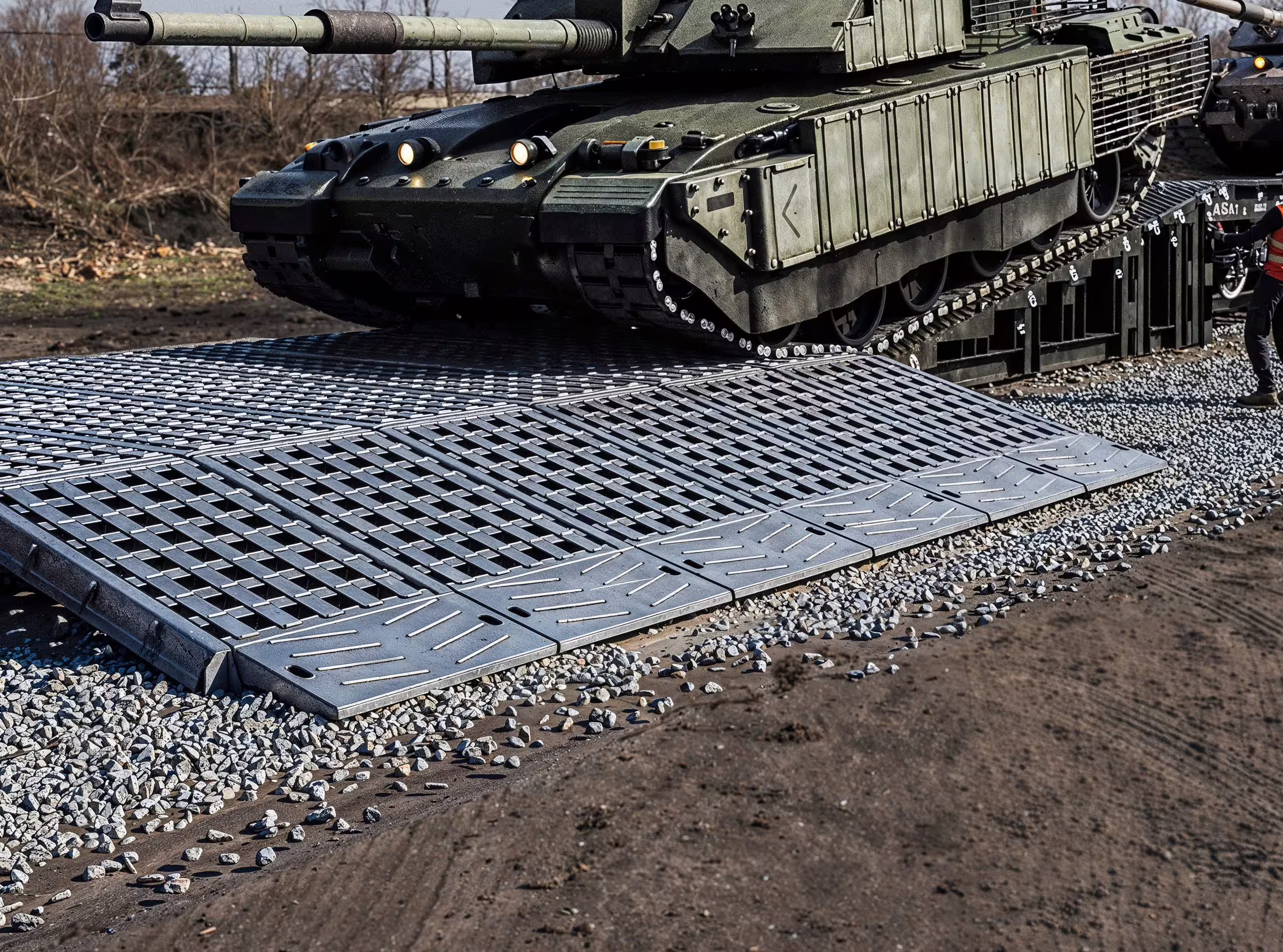

Why it’s differentRM90 RailMat 90 — a modular steel 90-short-ton mat that bridges the ground to the rail car so 4-person crews can load and unload heavy wheeled and tracked armour at unimproved railheads with no specialist plant.
Read moreShow less

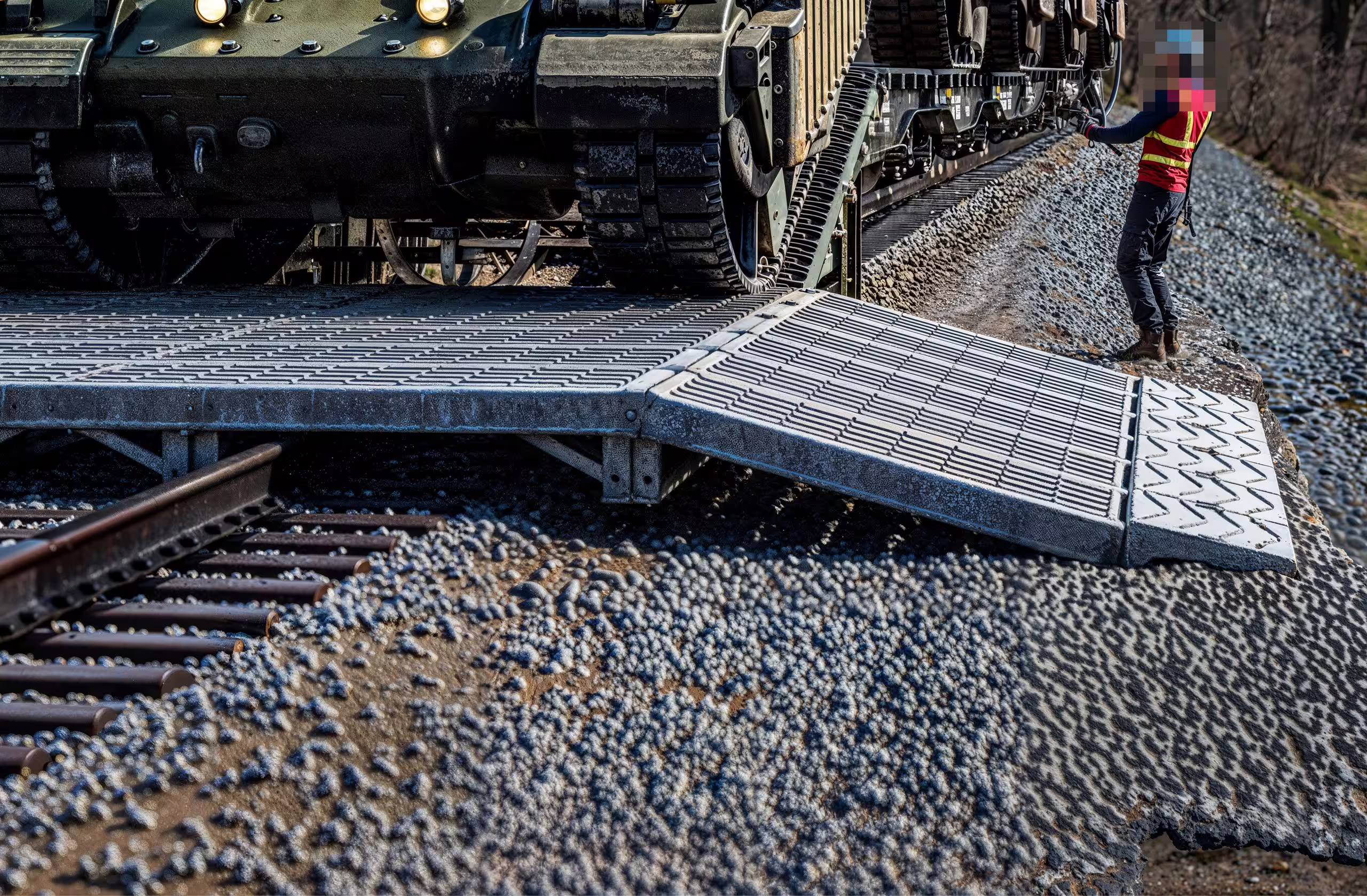

The mat spans across the rails (no rail contact), works on standard or broad gauge, and is laid before the consist arrives for true roll-on / roll-off. In service with NATO and multiple allied nations.
Engineered, calculated and proof-tested before service.

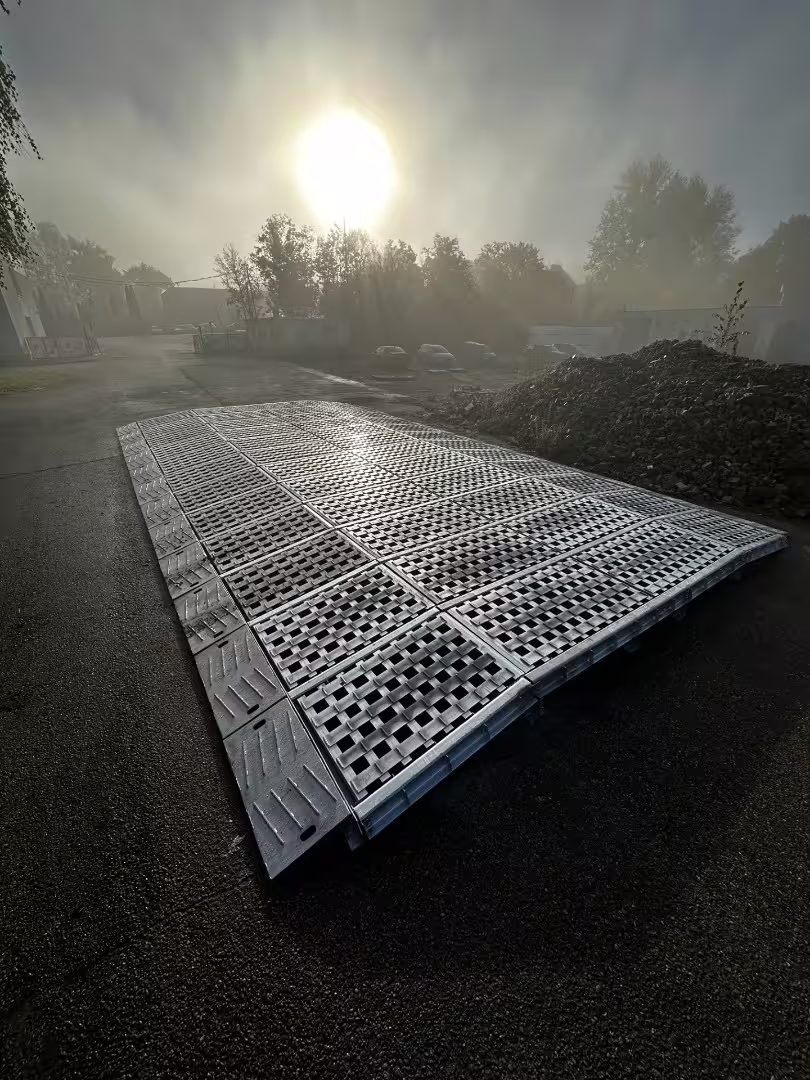

How it’s builtSteel; hot-dip galvanised; anti-slip deck panels
Read moreShow less
Hot-dip galvanised; load-certified 90 short tons; NATO NCAGE U19F4; 5-year limited warranty
The engineering envelope.
Specifications- Capacity
- 90 short tons (82 t)
- Overall
- 25 ft 7 in (7.8 m) L × 22 ft 4 in (6.8 m) W — 6 sections
- Section width
- 3 ft 7 in (1.1 m)
- Weight
- ~19,700 lb (8,950 kg)
- Crew
- Manual assembly is possible throughout - the number of personnel per element should suit the element weight and the crew's lifting capability, with a minimum of four people for decks and main beams. A forklift truck or other lifting device is advisable to assist transport and assembly.
- Operating temp
- −20 °C to +50 °C
- Materials
- Steel; hot-dip galvanised; anti-slip deck panels
- Certification
- Hot-dip galvanised; load-certified 90 short tons; NATO NCAGE U19F4; 5-year limited warranty
- Transport

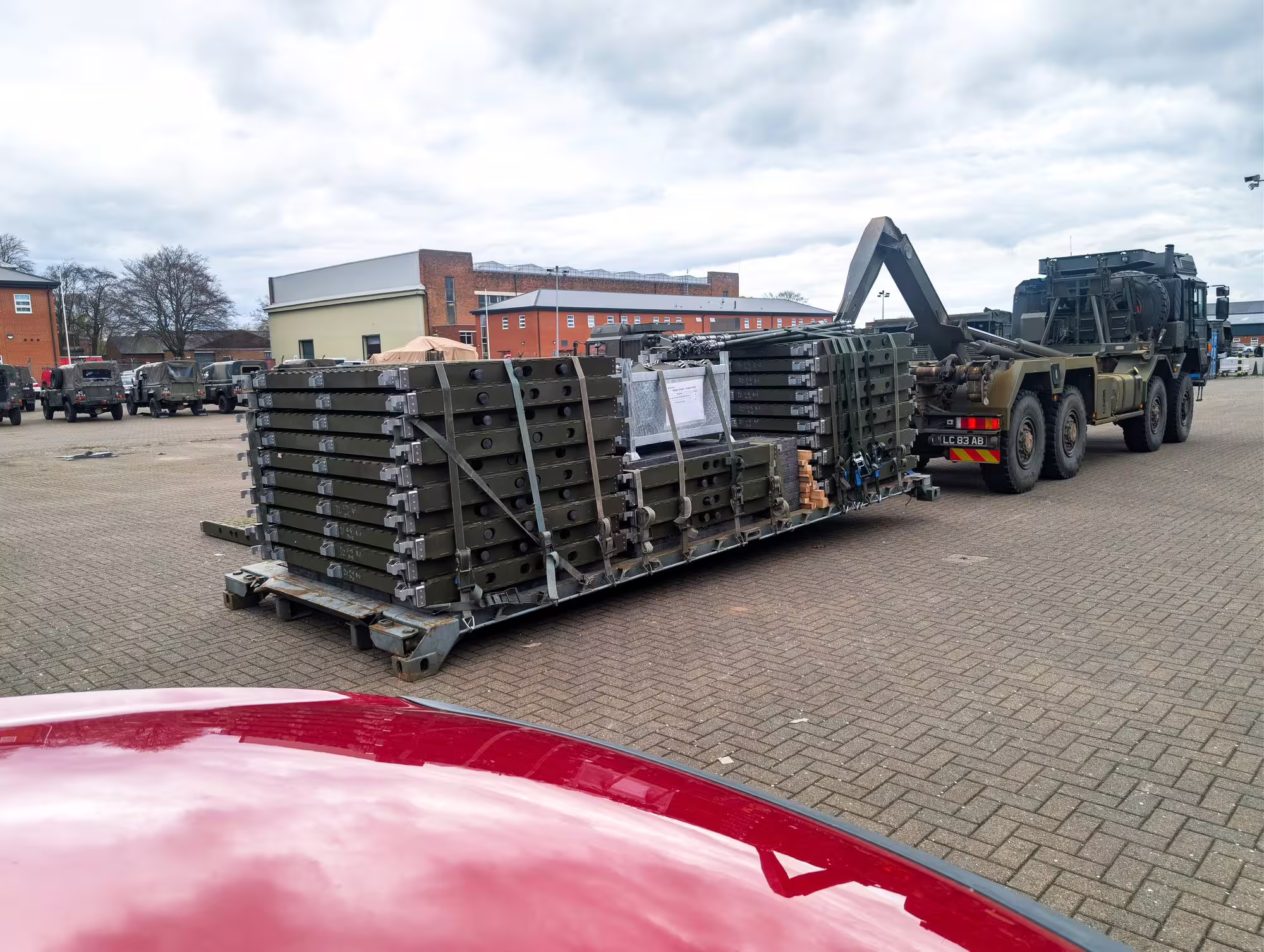

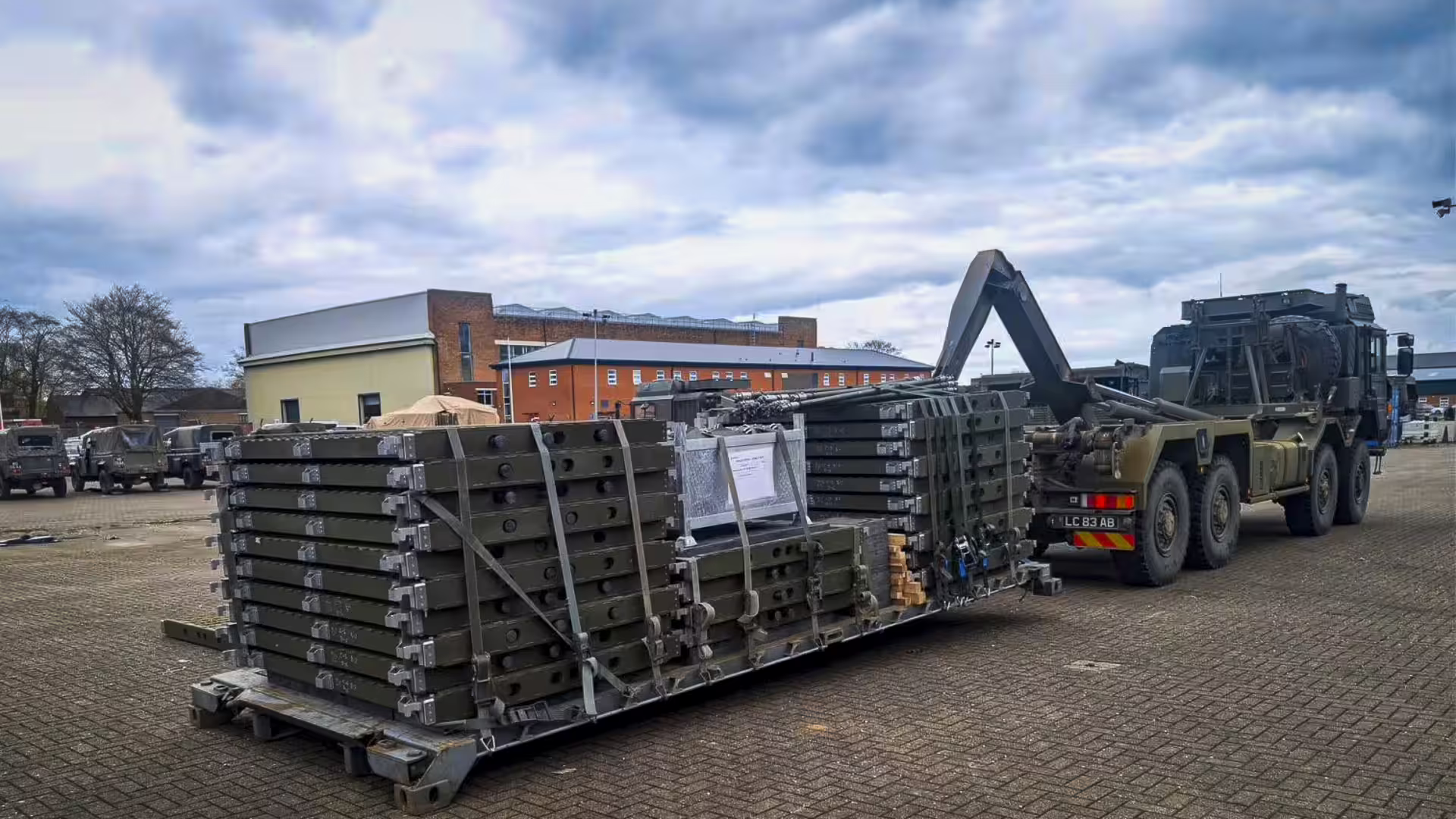

- Disassembles for containerised transport
- Pack
- Flat-pack / knocked-down
- Handling
- No — crew-installed
- Site & setup
- Laid on the ground before the consist arrives; spans across the rails (no rail contact); 4-person manual assembly (forklift recommended for handling/transport). Note: can only be moved when disassembled — once assembled on the ground it must not be moved.
