One pallet. Ten minutes.
90-ton, load-certified deployable ramp — folds to a single 463L air pallet, operational in ten minutes, no fixed infrastructure.
MUDR-PD90 - Ramp 90 tonsWhat MUDR-PD90 - Ramp 90 tons brings to the load.
Explore MUDR-PD90 - Ramp 90 tons
Built for the fight, packed for the flight.
Why it’s differentMUDR-PD90 — modular deployable loading ramp, rated 90 short tons (82 t).
Read moreShow less

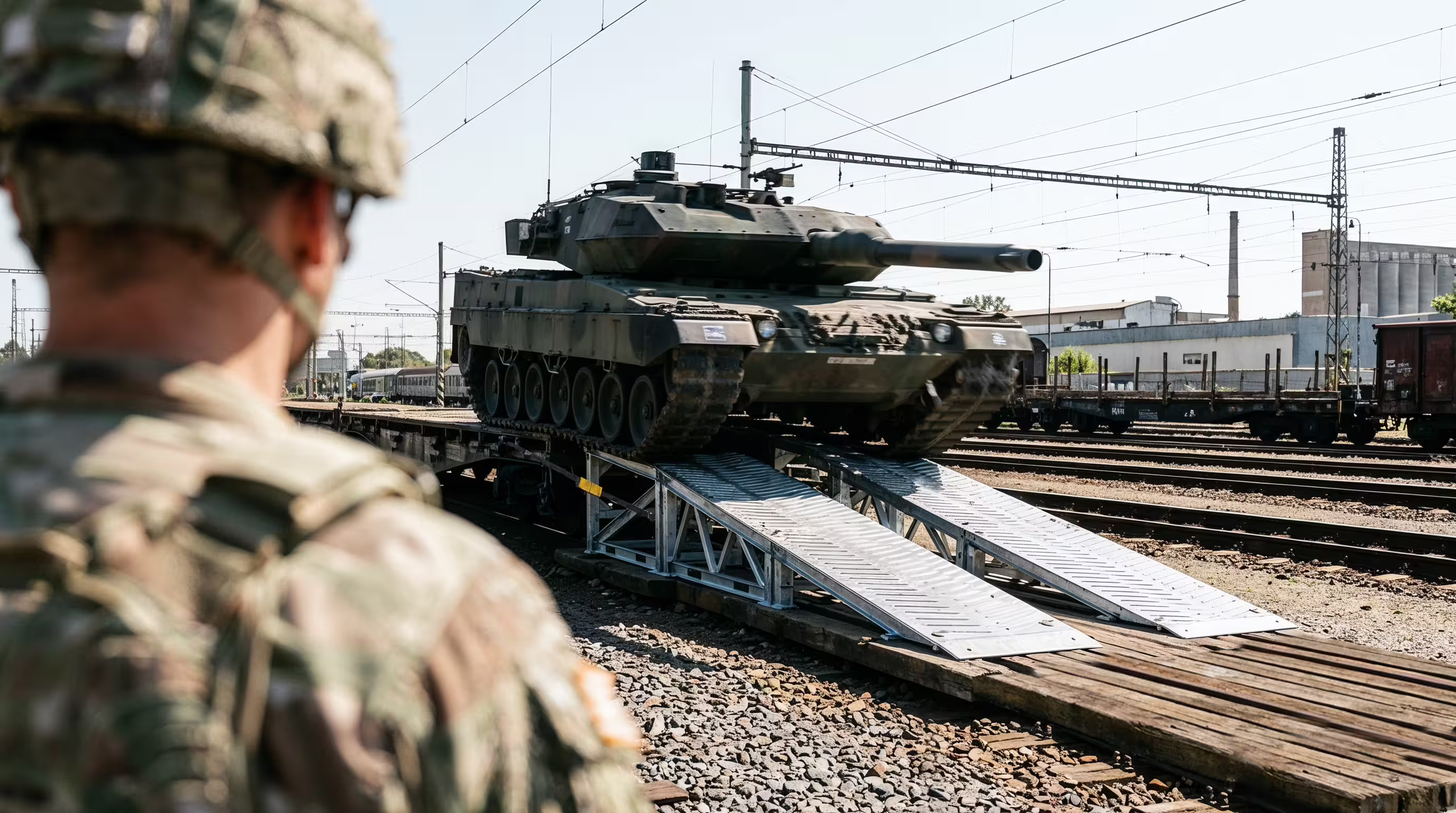

A load-certified, adjustable-height steel ramp for the full military vehicle spectrum up to 90 tons. Folds into a single 463L air pallet and assembles in 10 minutes, handling rail offload, truck offload and retrograde washing with no fixed infrastructure. Fielded with NATO-member and allied forces.
Engineered, calculated and proof-tested before service.

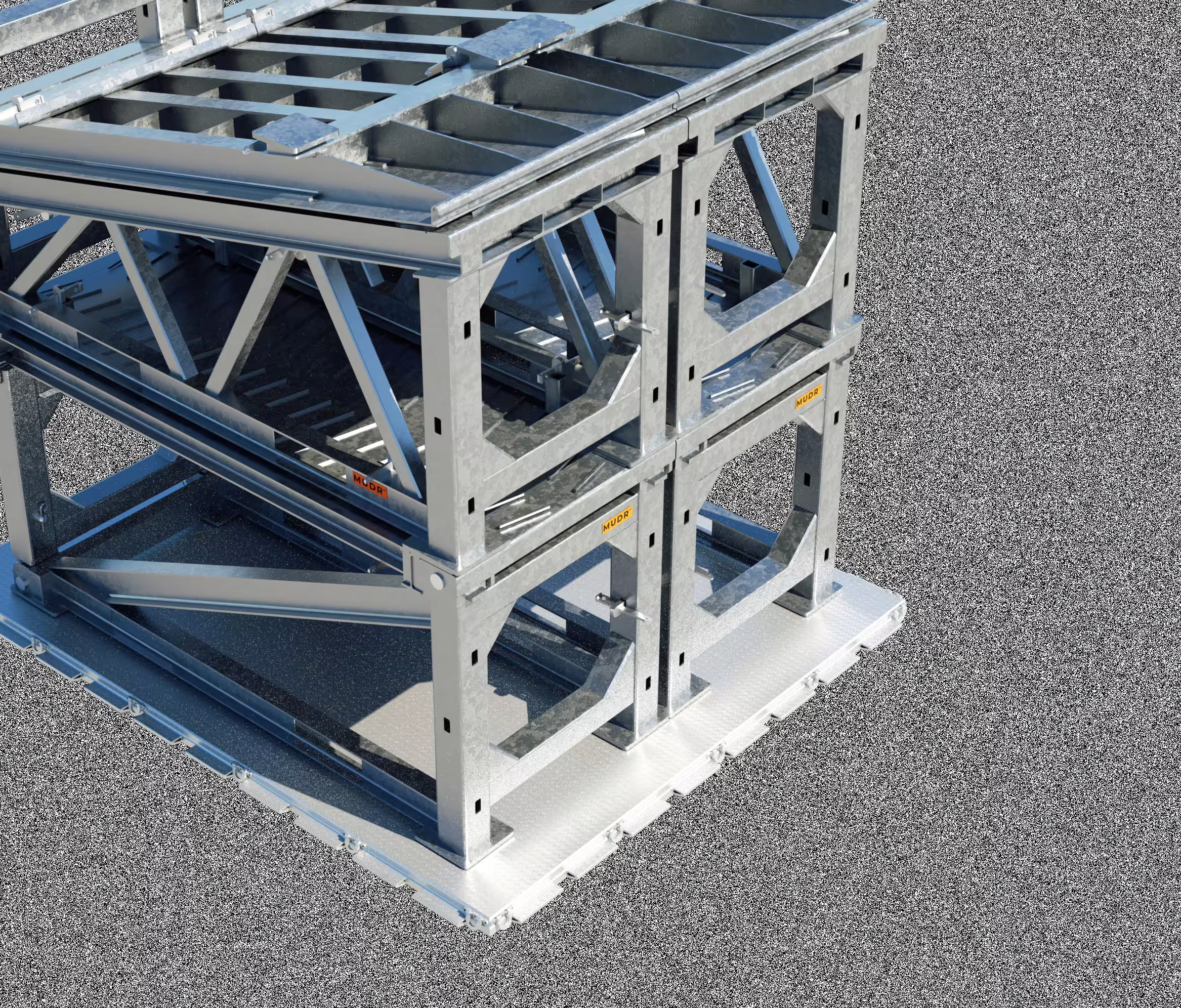

How it’s builtMin. S355 steel — EN 10025 / ASTM A572 Gr.50; hot-dip galvanized EN ISO 1461 / ASTM A123 (85 µm min)
Read moreShow less
Steel EN 10025 / ASTM A572 Gr.50; galvanizing EN ISO 1461 / ASTM A123; load-certified; NATO NCAGE U19F4
MUDR-PD50 (50 t) and MUDR-PD90 (90 t); wash & inspection variant (MUDR-PD/WR); extendable with fixed 42 in platform pairs
The engineering envelope.
Specifications- Capacity
- 90 short tons (82 t)

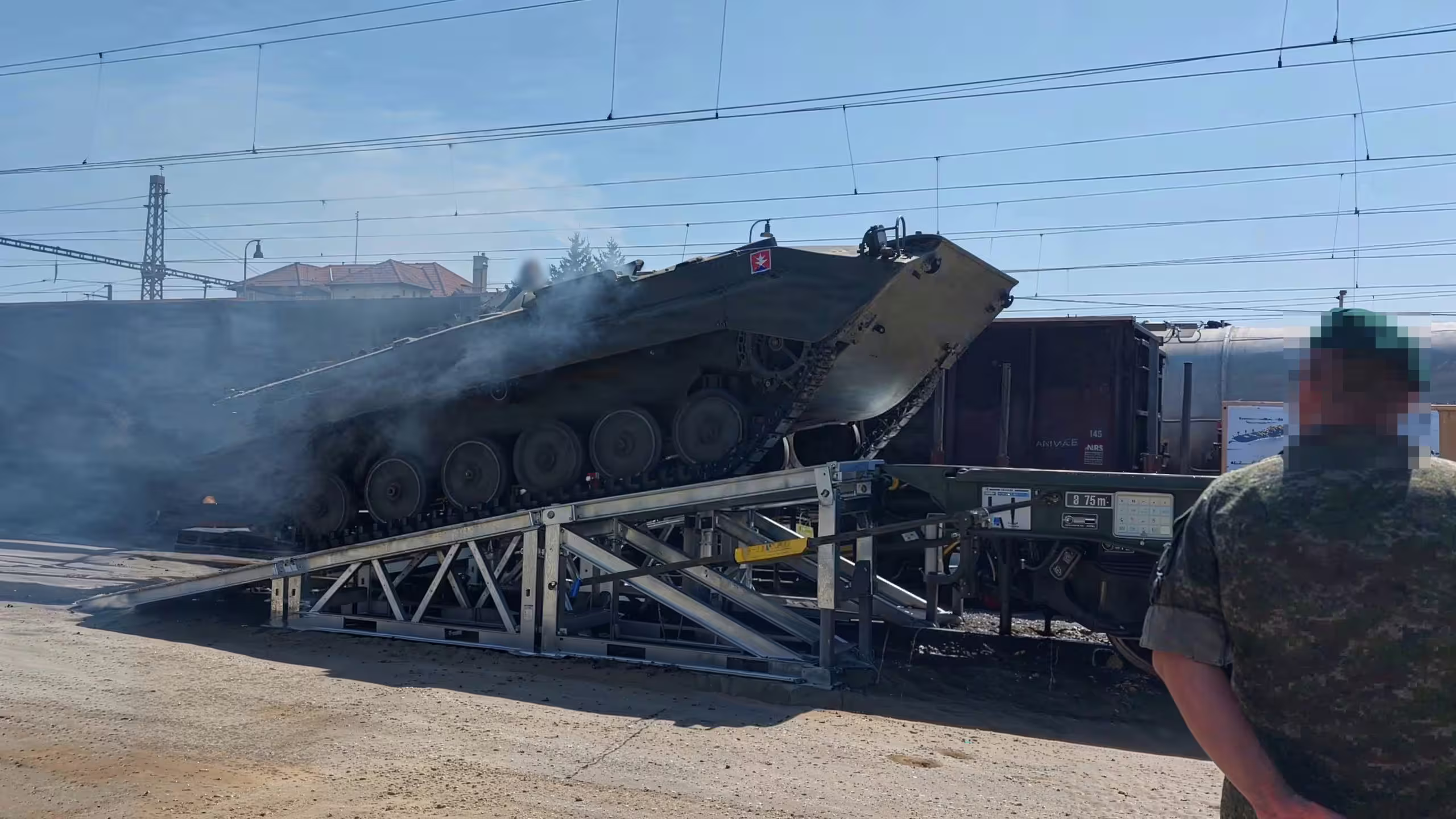

- Adjustable height
- 42–58 in (2 in increments)
- Ramp length
- 22 ft 8 in (6.91 m)
- Sections
- 4 main sections
- Assembly
- ~10 minutes
- Materials
- Min. S355 steel — EN 10025 / ASTM A572 Gr.50; hot-dip galvanized EN ISO 1461 / ASTM A123 (85 µm min)
- Certification
- Steel EN 10025 / ASTM A572 Gr.50; galvanizing EN ISO 1461 / ASTM A123; load-certified; NATO NCAGE U19F4
- Transport

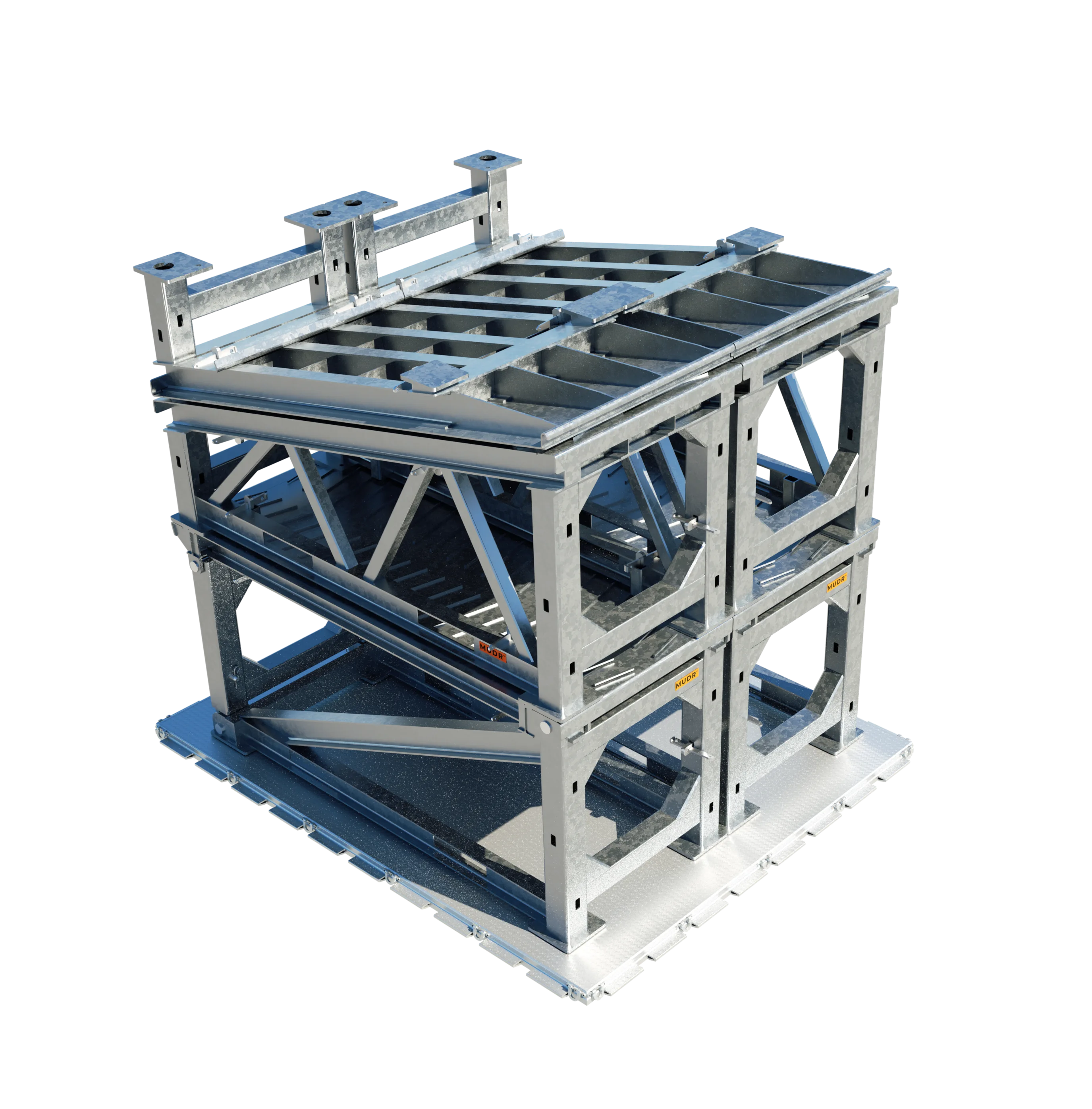

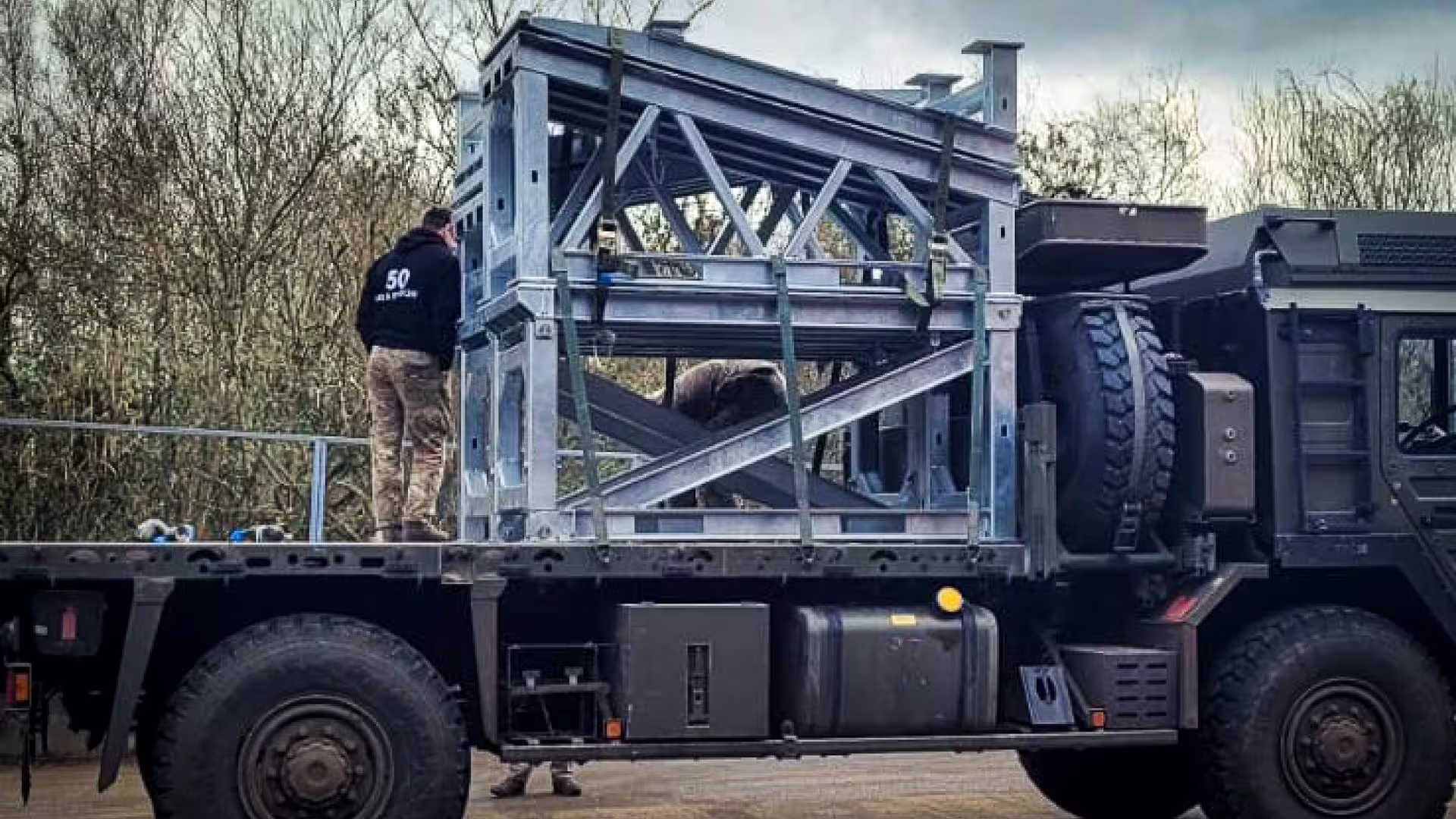

- 463L pallet — 1 kit per HCU-6/E 463L air pallet; container 1 × BICON or 3 × 20 ft ISO
- Pack
- Flat-pack / knocked-down
- Handling
- No — crew-installed
- Site & setup

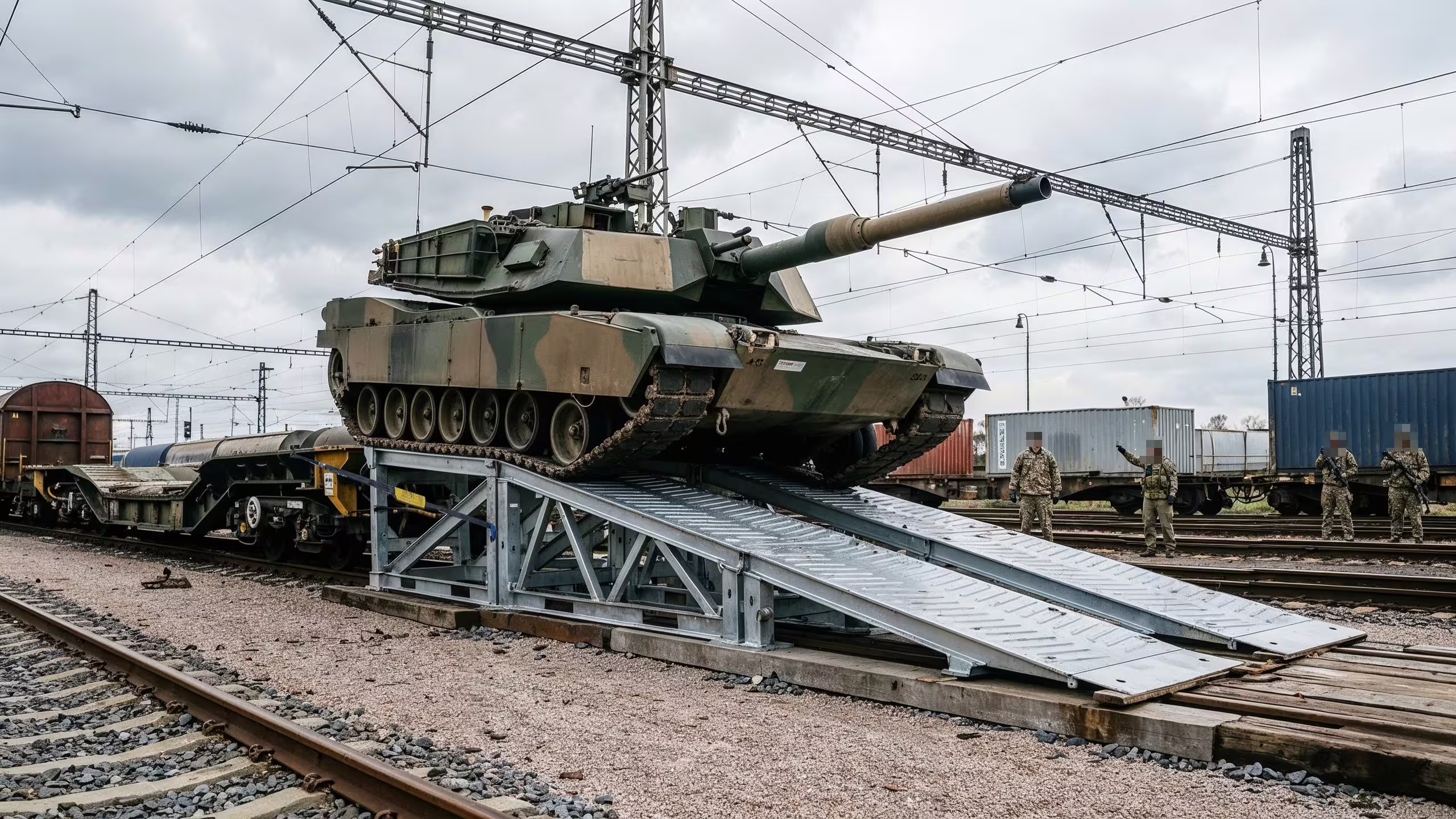

- No fixed infrastructure; assembles in 10 minutes; each section moveable by a standard 4K forklift; used alongside the rail car (not on the rails).
