No crane. No delay.
The ER40 EasiRamp 40 by EasiBridge — a hand-assembled aluminium rail side-load ramp that flat-packs into one tactical vehicle. MLC-40.
ER40 · EasiRamp 40What the ER40 EasiRamp brings to the load.
Explore the ER40
Built for the fight, packed for the flight.

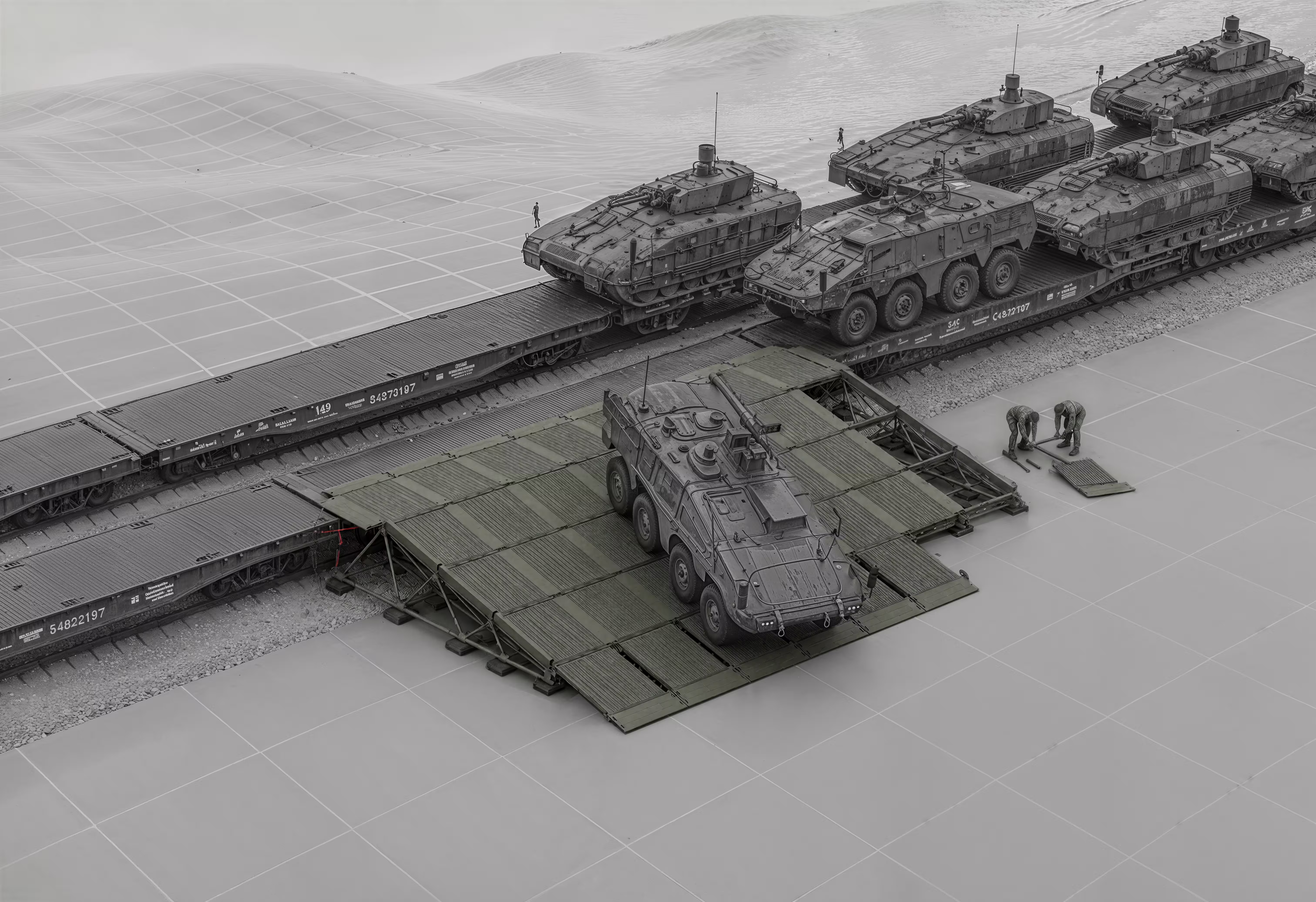

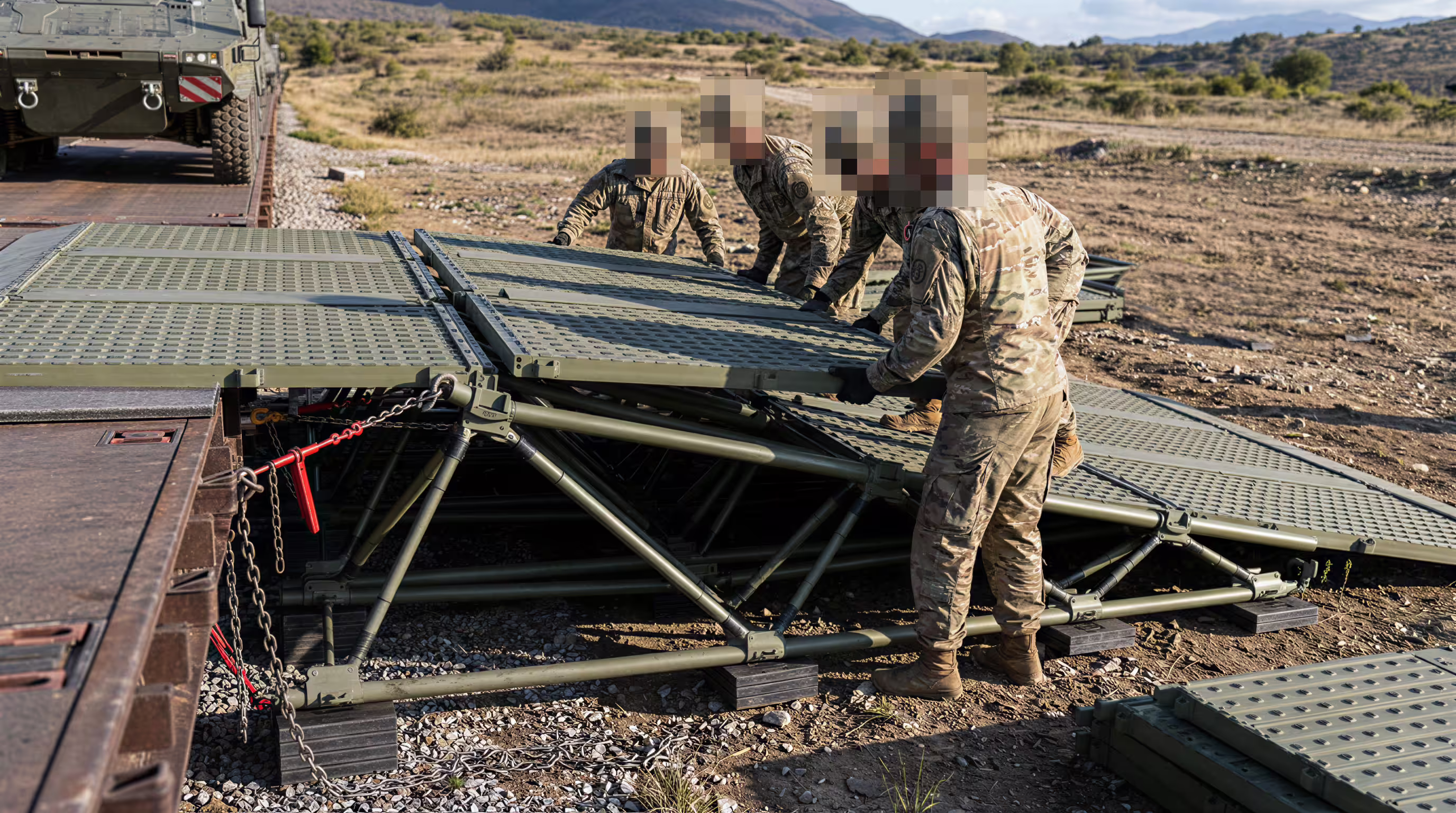

Why it’s differentThe ER40 EasiRamp is a portable rail side-offload ramp: a lightweight aluminium spaceframe that flat-packs into a single tactical vehicle and is hand-assembled by a small crew without cranes or specialist plant.
Read moreShow less

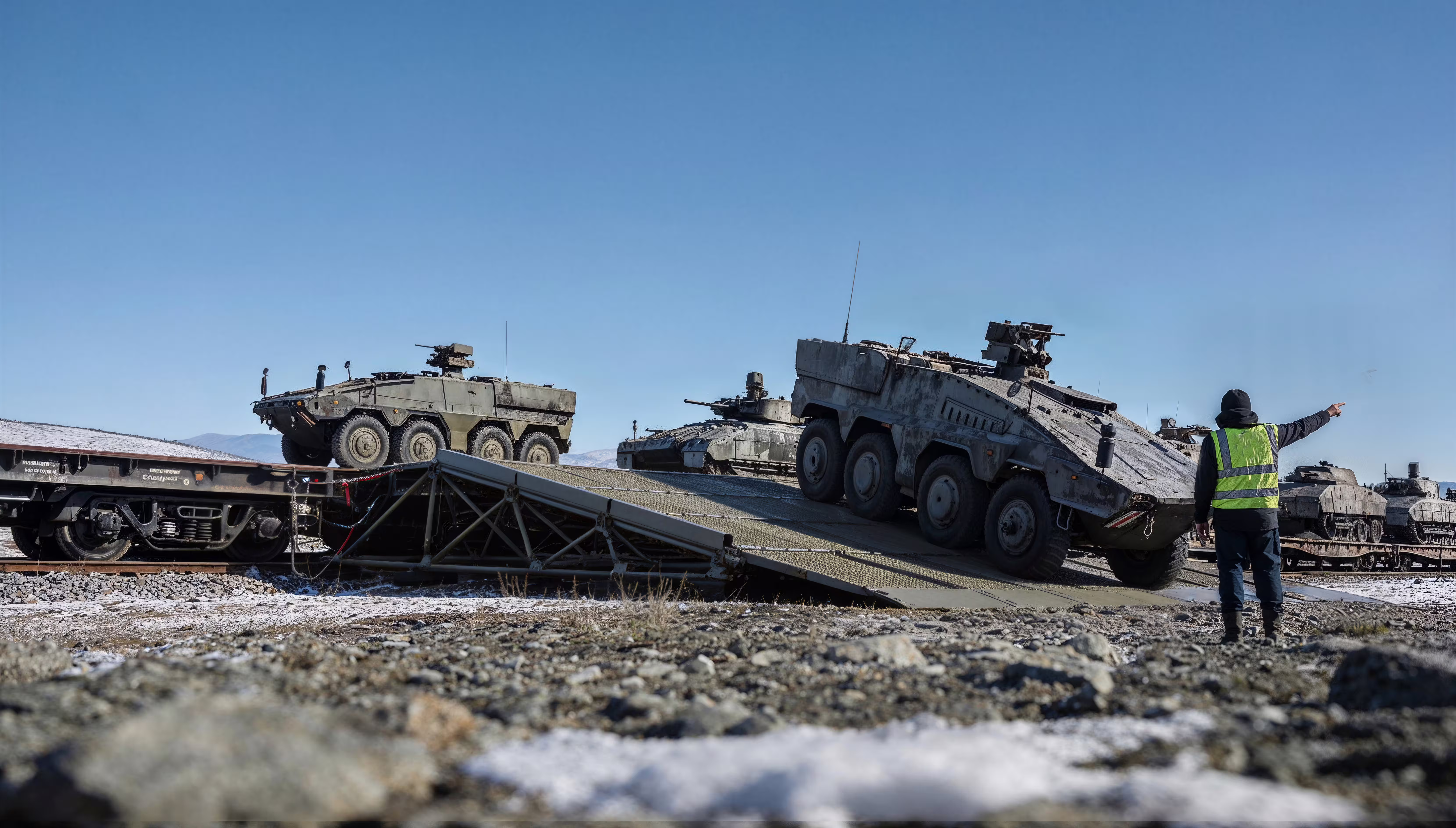

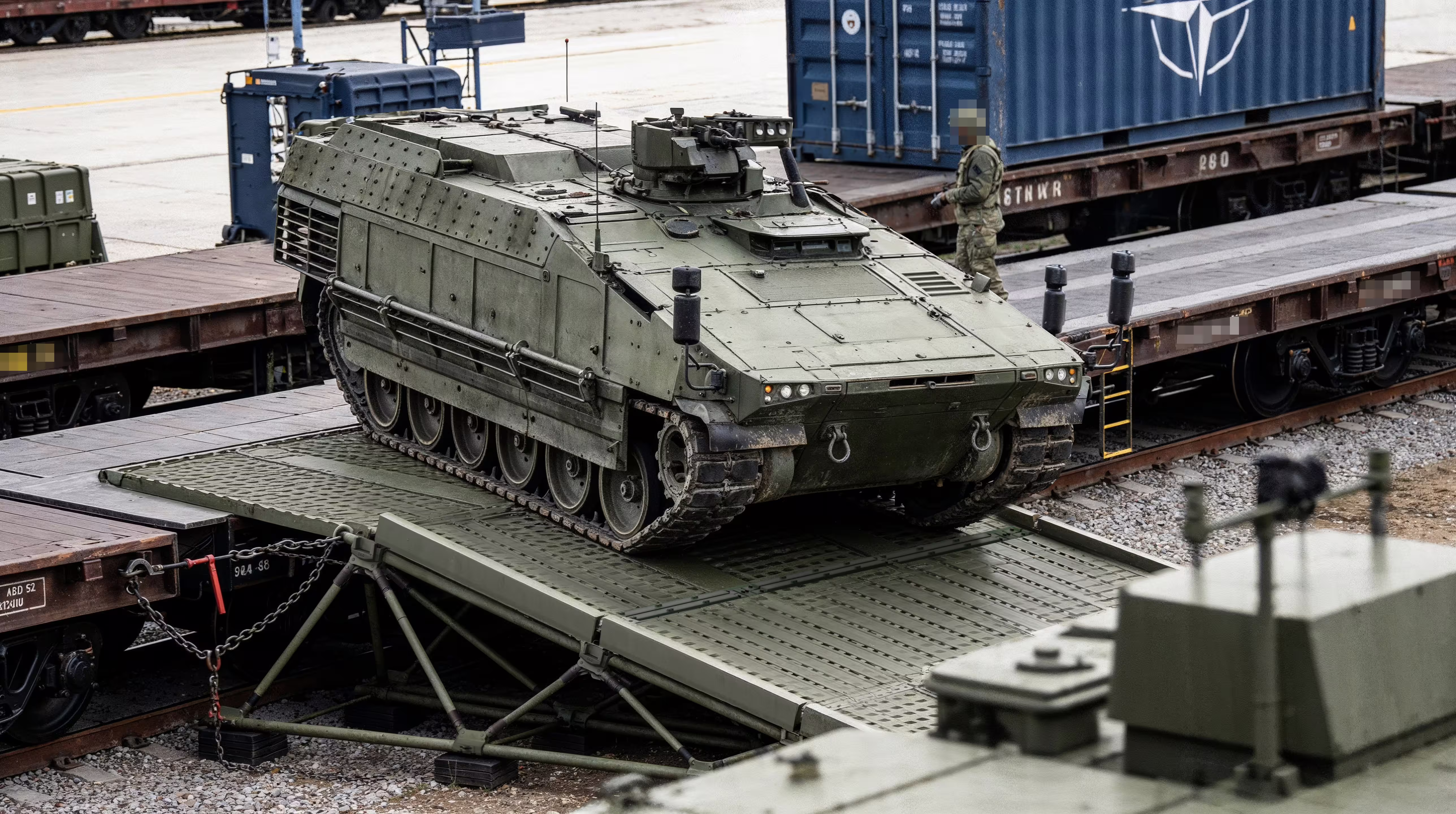

Pre-position it before the train arrives; when the consist stops, MLC-40 wheeled and tracked vehicles drive off immediately — at any railhead, standard or broad gauge, no fixed infrastructure. In evaluation — available for procurement.
Engineered, calculated and proof-tested before service.
How it’s builtHigh-strength 6082-T6 aluminium alloy; EB100 spaceframe with EasiLock™ cast node connectors (bolted, not welded); anodised aluminium finish (military spec)
The engineering envelope.
Specifications- Load class
- MLC-40
- Ramp length
- ~34 ft 5 in (10.5 m), incl. section on the railcar
- Modular sections
- 59 in (1.5 m) wide each
- Max component weight
- 44 lb (20 kg)
- Gauge
- standard + broad (configurable)
- Materials
- High-strength 6082-T6 aluminium alloy; EB100 spaceframe with EasiLock™ cast node connectors (bolted, not welded); anodised aluminium finish (military spec)
- Certification
- MLC-40 load class; product certification in evaluation
- Transport
- Road — Flat-packs into a standard military cargo vehicle; complete system packs into one 20 ft ISO container
- Pack
- Flat-pack / knocked-down
- Handling
- No — crew-installed
- Site & setup
- No site preparation — rubber-pad ground feet distribute load on ballast, road verge or field; positioned alongside the rail car and secured (restraining points chain back to the railcar); levelling jackpads for uneven ground; pre-position before the consist arrives. Repeated assembly/disassembly; field-repairable.
