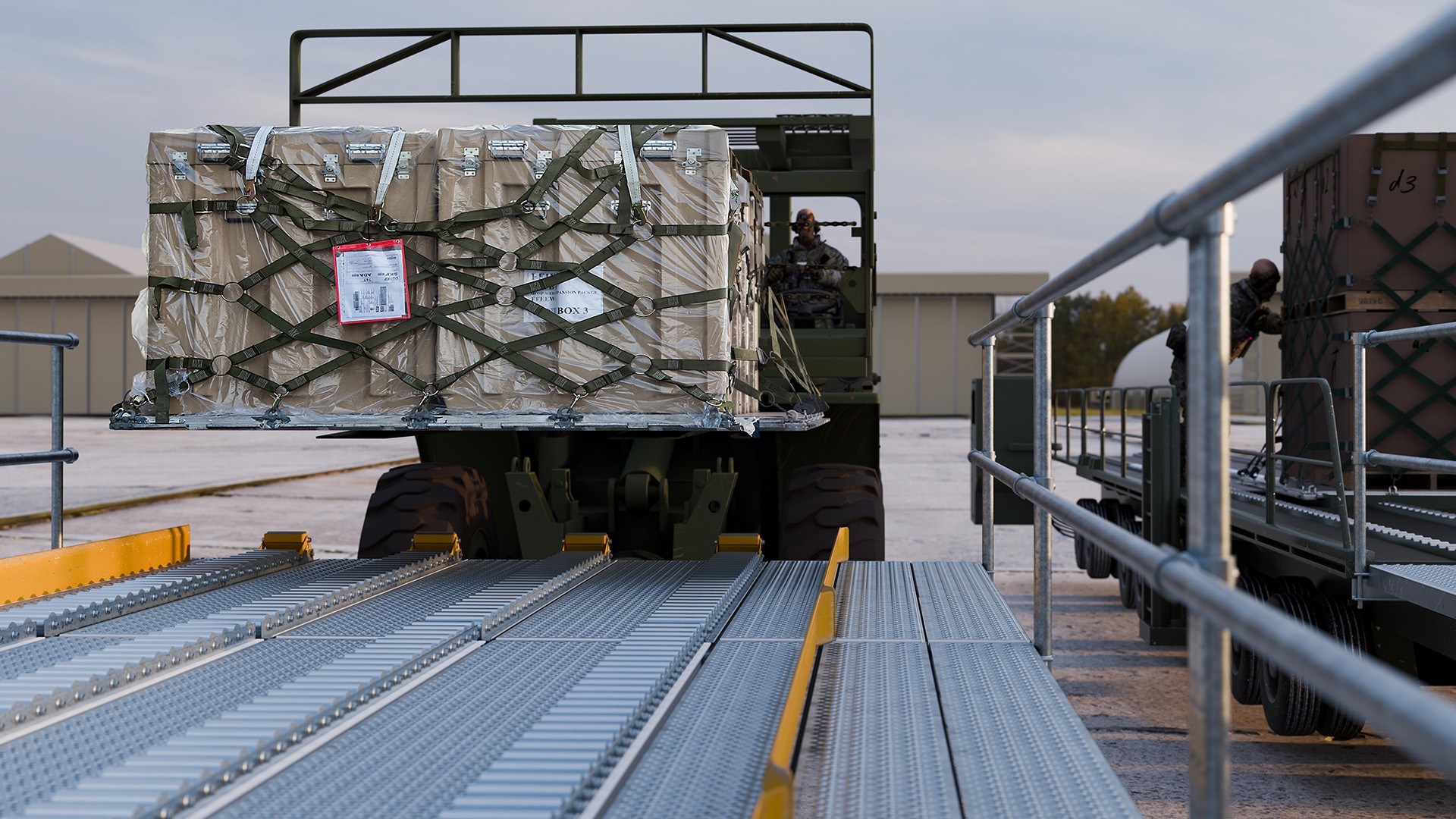

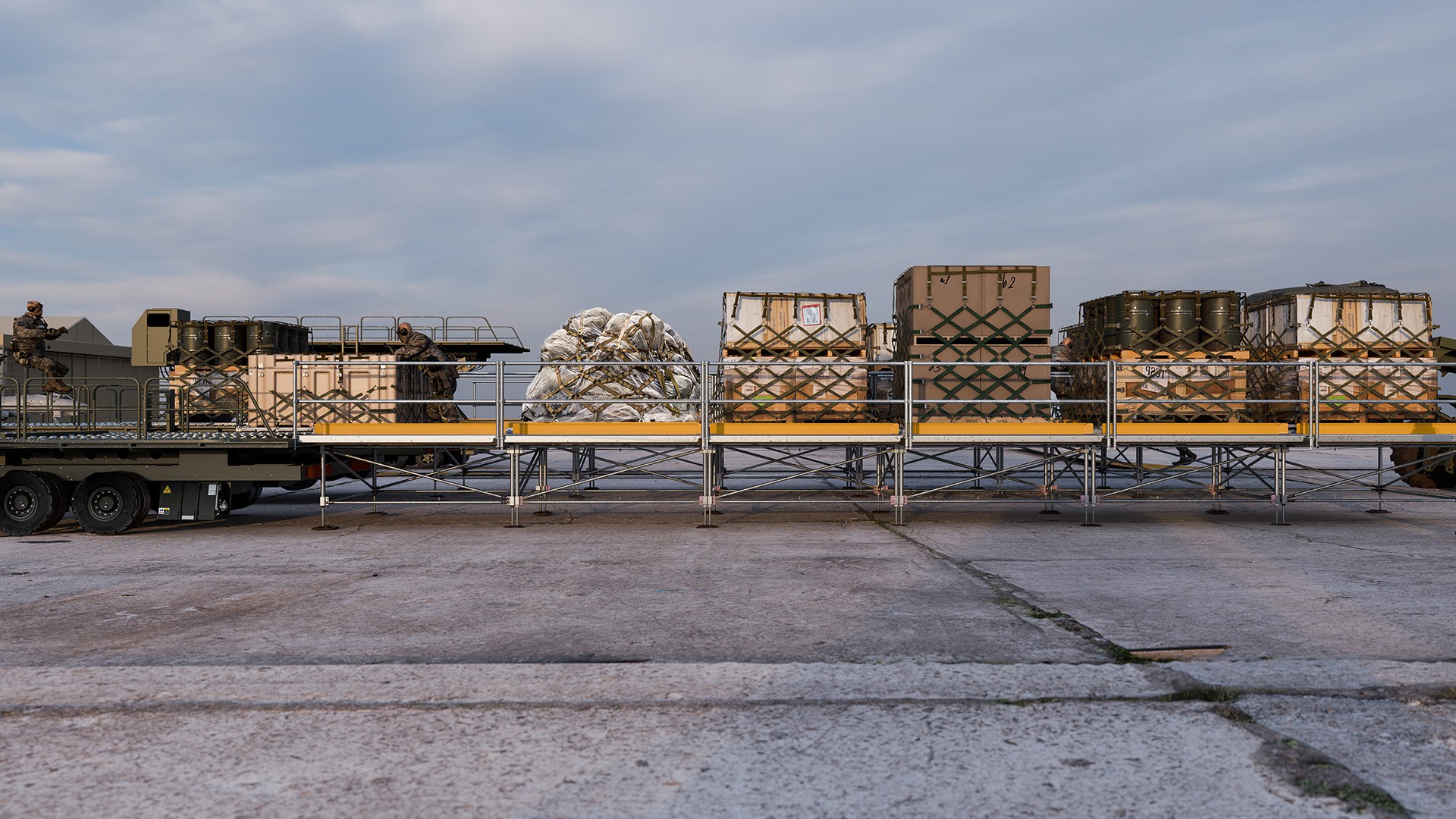

Air Cargo Dock

  • Two persons, 15 minutes per table bay.
  • Fast, easy deployment and setup.
  • Large capacity -
  • Each table supports 12,500 lbs or 5682 kgs.
  • Independent, adjustable-height legs (37.5" – 43.5", 0.95m – 1.11m) for levelling and docking ease.
  • Walkway of the last segment drops down on this hinge. Side guide rotates with the walkway out of the way of forks.

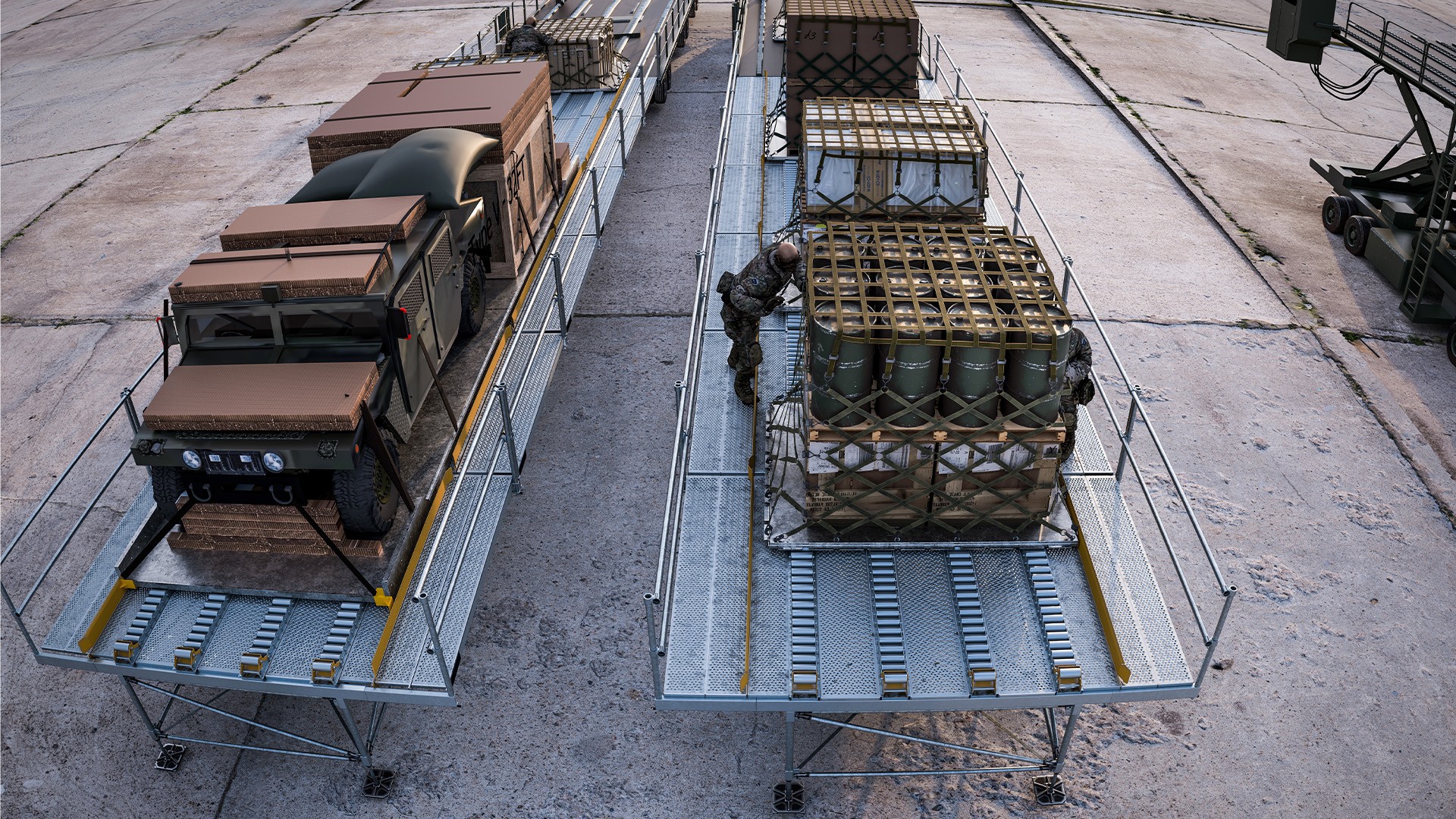

  • Each table includes a set of removable walkways with handrails, guiderails, and pallet stops. Large contact pads with easy adjustment feet allow for easy levelling on existing hardstanding.

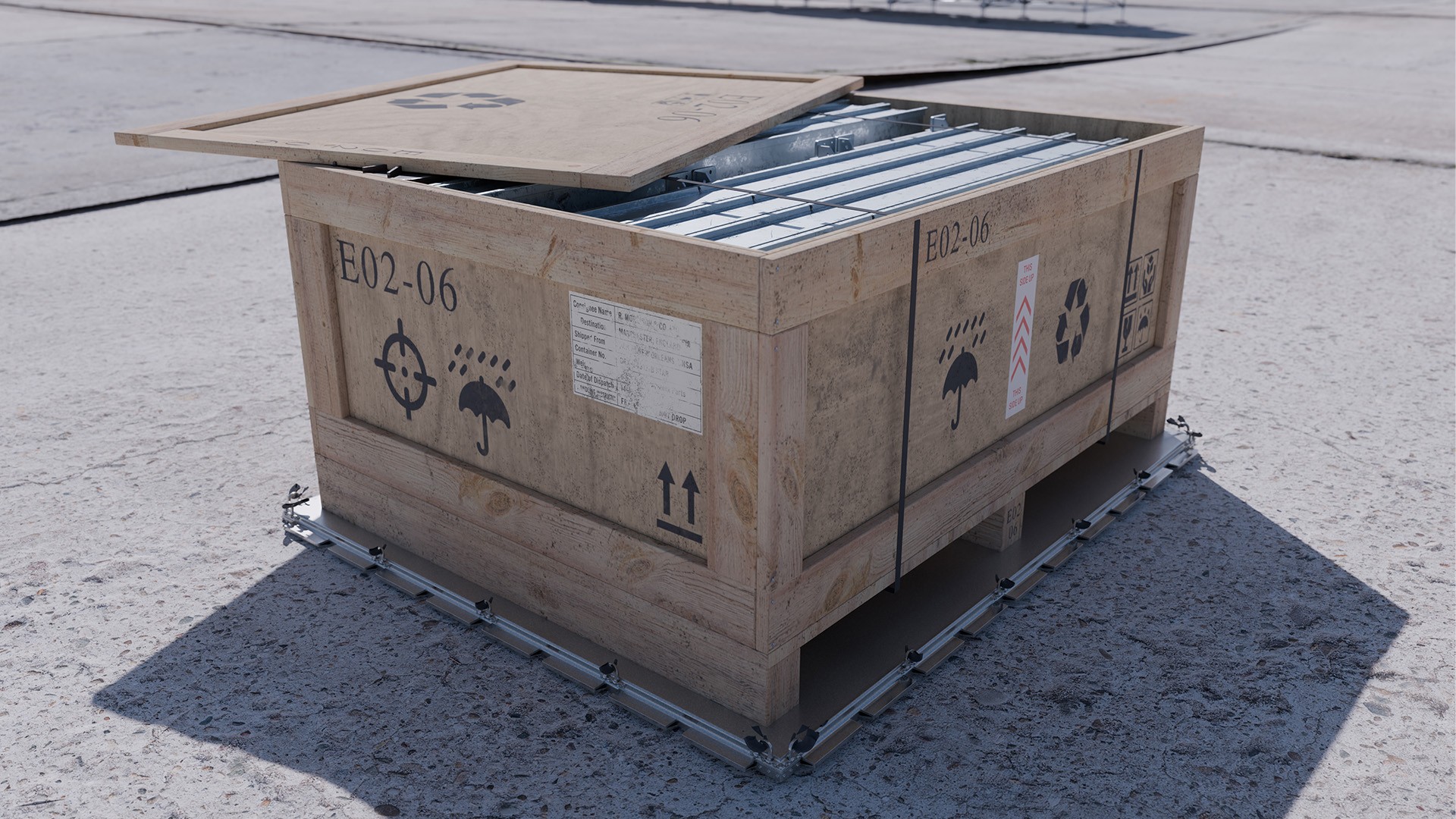

  • Easily transported - 6 tables dismantle to fit on a single 463L military pallet.
  • No special tools required for setup.
  • Lightweight construction.

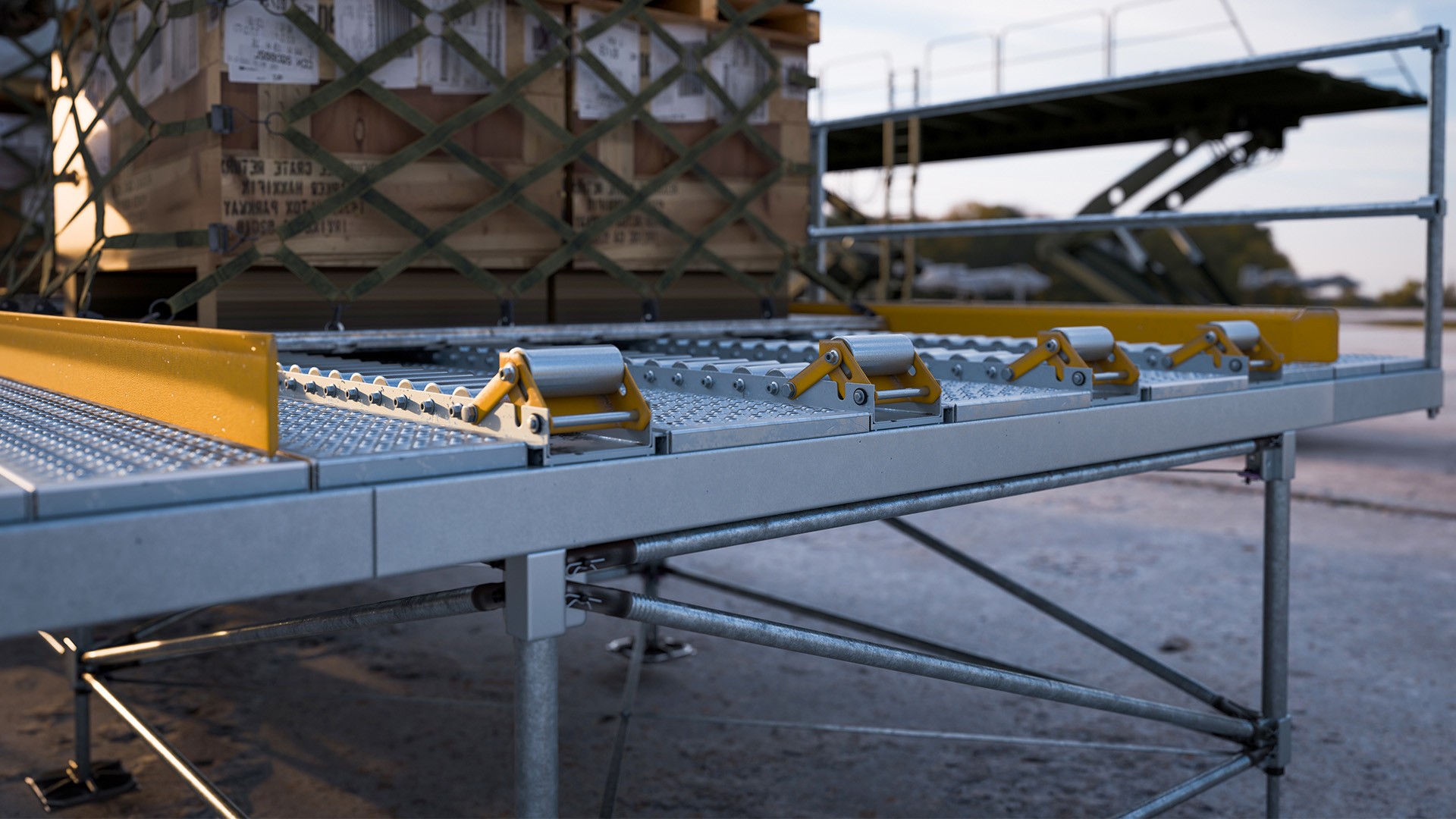

  • Stainless Steel Roller conveyors for ease of pallet positioning.
arrow

Features

banair

DEPLOYABLE

DURABLE

FLIGHT-OPS

FORKLIFT

MODULAR

HEAVY LOAD

Documents

banair
pdf ACD- Air Cargo Dock 2025
