Modular Operations Trainer Complex.

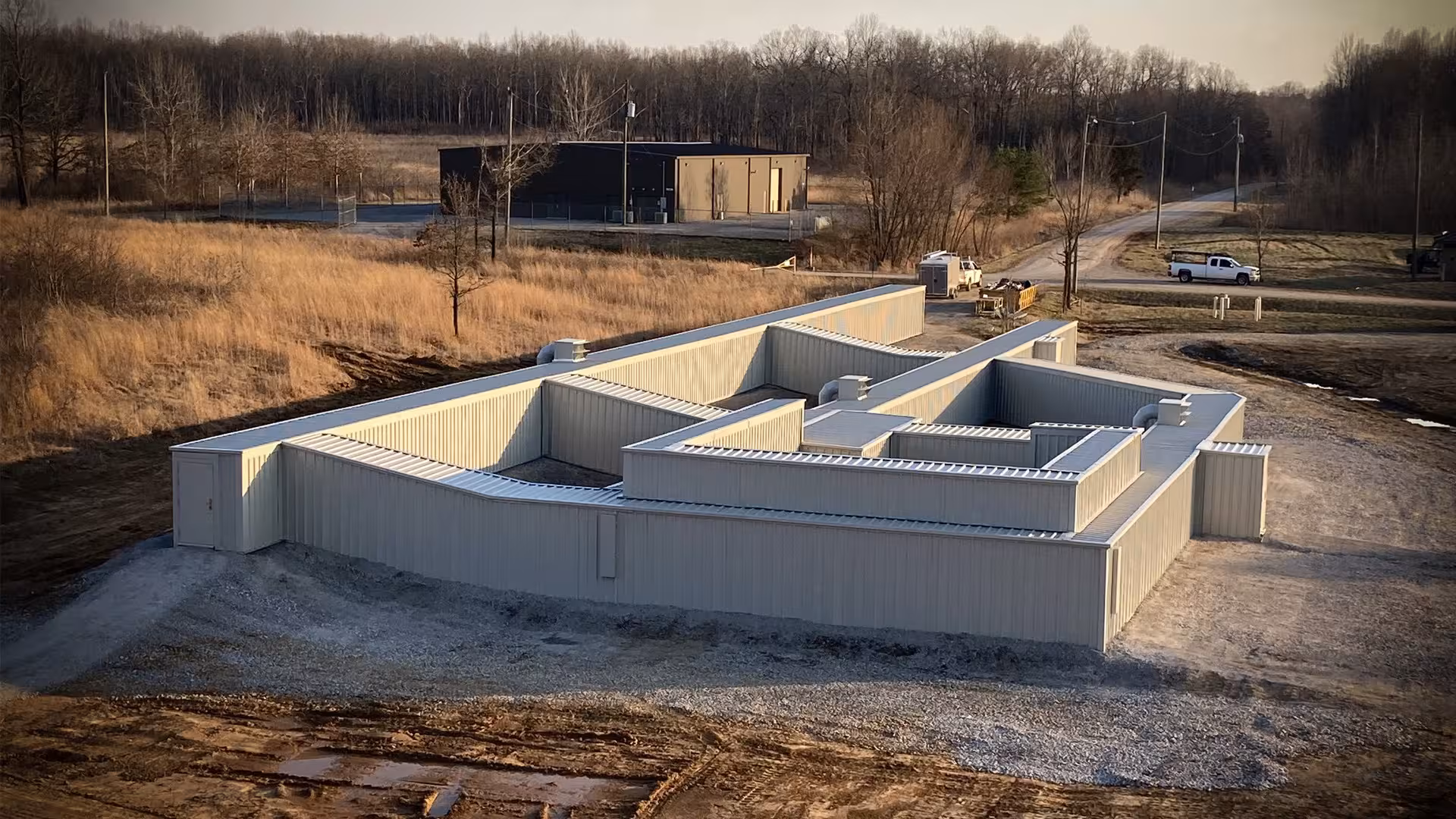

A surface-mounted urban and subterranean trainer that assembles on any surface, with no excavation, and is reconfigured panel by panel.
MOTCmodule width
multi-level entry
panel material guarantee
suites per 20 ft ISO
What MOTC brings to the mission.
Explore MOTC
Purpose-built for deployment.
Why it’s differentRead moreShow less
Heavy-duty galvanized-steel modules assemble on any surface with no excavation, and panels swap out to change routes and challenges on the fly. One panel set covers every environment: the options change, the system does not. Designed to US Army requirements; manufactured by BANAIR (authorized dealer: Option 1 Systems).
What gets specified on top of the base system.
Options- Quarter
- crawl height
- Half
- reduced height
- Standard
- full height
- Width
- up to 14 ft; wider by special order
- Levels
- up to four, with stair, ladder and shaft transitions
- Breach door and cutting breach door
- Quarter-panel breach
- Wood, steel-plate, cell and rebar door breaches
- BTI blast-door kit
- Pyrotechnic dispenser
- Cadre access doors and internal block-off panels
- Roof-hatch breach
- Ventilation kit, rock-floor and rigid ABS walls
- Two-level crawl and culvert runs
- Vertical shaft with internal rappel
- Command-centre breach
- Ladder and stair transitions
- Three- and four-level transitions
- Rotary-wing insertion platform
- Rappel wall and fast-rope points
- Cargo-net climb
- External stair kit and ladders
- SOT-C CCTV, lighting and audio
- Cadre control module with after-action recording
- MOTC/CK simulation integration — day and night vision, VBS3, Call for Fire
- Module
- 7 ft 3 in × 4 ft 10 in × 7 ft 9 in, 490 lb
- Per 20 ft ISO
- ×20 modules — 145 linear ft of training
- Per TRICON
- ×5 modules — 36 linear ft of training
- Use
- subterranean and urban layouts in austere areas
Engineered, calculated and proof-tested.
How it’s builtRead moreShow less
Standards: designed to US Army requirements; compliant with TC 3-20.40 IWTS Table II; ground frames 10-yr warranty; panels 25-yr external material guarantee.
Manufactured by BANAIR; authorized dealer Option 1 Systems. The full option set — module sizes, breach and upgrade panels, challenge modules, insertion, monitoring and simulation integration — is listed under Options above.
Engineered in from the start.
Capabilities- Surface-mounted
- Reconfigurable
- Multi-level
- 25-yr panels
- Ships ×20
- Crew-installed
The engineering envelope.
Specifications- Module width
- up to 14 ft (more by special order)
- Multi-level entry
- up to 4 levels
- Ground frames
- 10-year warranty
- Panels
- 25-year external material guarantee (~40-year economic lifespan)
- Suite module size
- 7 ft 3 in × 4 ft 10 in × 7 ft 9 in, 490 lb
- Suite module packing
- ×20 per 20 ft container (145 linear ft), ×5 per TRICON (36 linear ft)
- Panels
- 1 in CNC steel sandwich, pre-galvanized + PVC skin
- Frame
- powder-coated steel, RAL 7038 (≥85 µm)
- Core
- rigid fire-retardant polystyrene
- Standard
- TC 3-20.40 IWTS Table II
- Spec
- designed to US Army requirements
- Warranty
- frames 10-yr, panels 25-yr
- Pack
- Flat-pack / knocked-down
- Cranage required
- No — crew-installed
- Assembly
- No special tools, contractors or MHE
- Ground works
- None — no excavation
- Foundation
- Galvanized steel sub-frames levelled and connected on gravel, dirt, asphalt, concrete or grass
- Siting
- Assembles around existing infrastructure
Match a system to your mission.
Tell BANAIR what you need to store, move, shelter, support or train for. Engineering will route you to the right application, product family and next step in one business day.
